ELDORADO
DB02600Serial Numbers: 100 to 24199

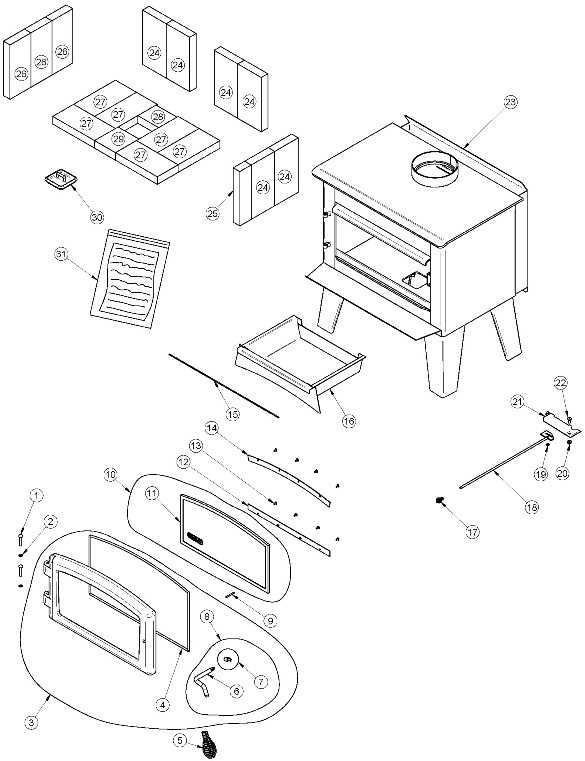

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | 30170 HINGE PIN 5/16"Ø x 1 1/2"L 2 / appliance (sold individually) | CAD $2.00 | -- | |
| 2 | 30055 HINGE PIN RETAINING RING 5/16"ID x 0.512"OD 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 3 | SE24085 DOOR FRAME WITH HANDLE AND GASKET WITHOUT GLASS 1 / appliance (sold individually) | CAD $230.00 | -- | |
| 4 | AC06100 SILICONE & 1/4" x 1/2" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 5 | AC07860 1/2" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 6 | 99998 DISCONTINUED 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 7 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 8 | AC09165 HANDLE & LATCH KIT 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 9 | 30101 SPRING TENSION PIN 5/32"Ø x 1 1/2"L 1 / appliance (sold individually) | CAD $2.00 | -- | |
| 10 | SE08537-10 7 7/8" x 16 3/4" x 8 25/32" ARCHED REPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | CAD $150.00 | -- | |
| 11 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | CAD $11.00 | -- | |
| 12 | PL08537-05 BOTTOM GLASS RETAINER 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 13 | 30124 SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC 8 / appliance (sold individually) | CAD $1.00 | -- | |
| 14 | PL08537-04 TOP GLASS RETAINER 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 15 | 99998 DISCONTINUED 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 16 | SE16055 ASH DRAWER 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 17 | AC07861 1/4" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $7.00 | -- | |
| 18 | SE16032 AIR CONTROL ROD ASSEMBLY 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 19 | 30059 5/32" I⌀ PUSHNUT 1 / appliance (sold individually) | CAD $12.00 | -- | |
| 20 | 30220 FLANGED LOCKNUT 1/4-20 1 / appliance (sold individually) | CAD $1.00 | -- | |
| 21 | SE16028 AIR CONTROL PLATE ASSEMBLY 1 / appliance (sold individually) | CAD $41.00 | -- | |
| 22 | 30096 1/4-20 x 3/4" ZINC CARRIAGE BOLT 1 / appliance (sold individually) | CAD $2.00 | -- | |
| 23 | 99999 BUILD TO ORDER 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 24 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 9 / appliance (sold individually) | CAD $3.50 | -- | |
| 25 | PL36018 2 1/4" x 8 3/4" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 26 | 29015 4" x 9" x 1 1/4" REFRACTORY BRICK 3 / appliance (sold individually) | CAD $10.00 | -- | |
| 27 | 29000 4" x 8" x 1 1/4" REFRACTORY BRICK 9 / appliance (sold individually) | CAD $3.50 | -- | |
| 28 | PL36103 3 1/2" x 4" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 29 | PL36084 4" x 4 1/2" x 1 1/4" REFRACTORY BRICK (AC-SB4.5) 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 30 | SE16059 ASH PLUG 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 31 | 99998 DISCONTINUED 1 / appliance (sold individually) | CAD $14.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
