ESCAPE 1800 - BLACK DOOR

DB03102-1Serial Numbers: 6350 to 8062

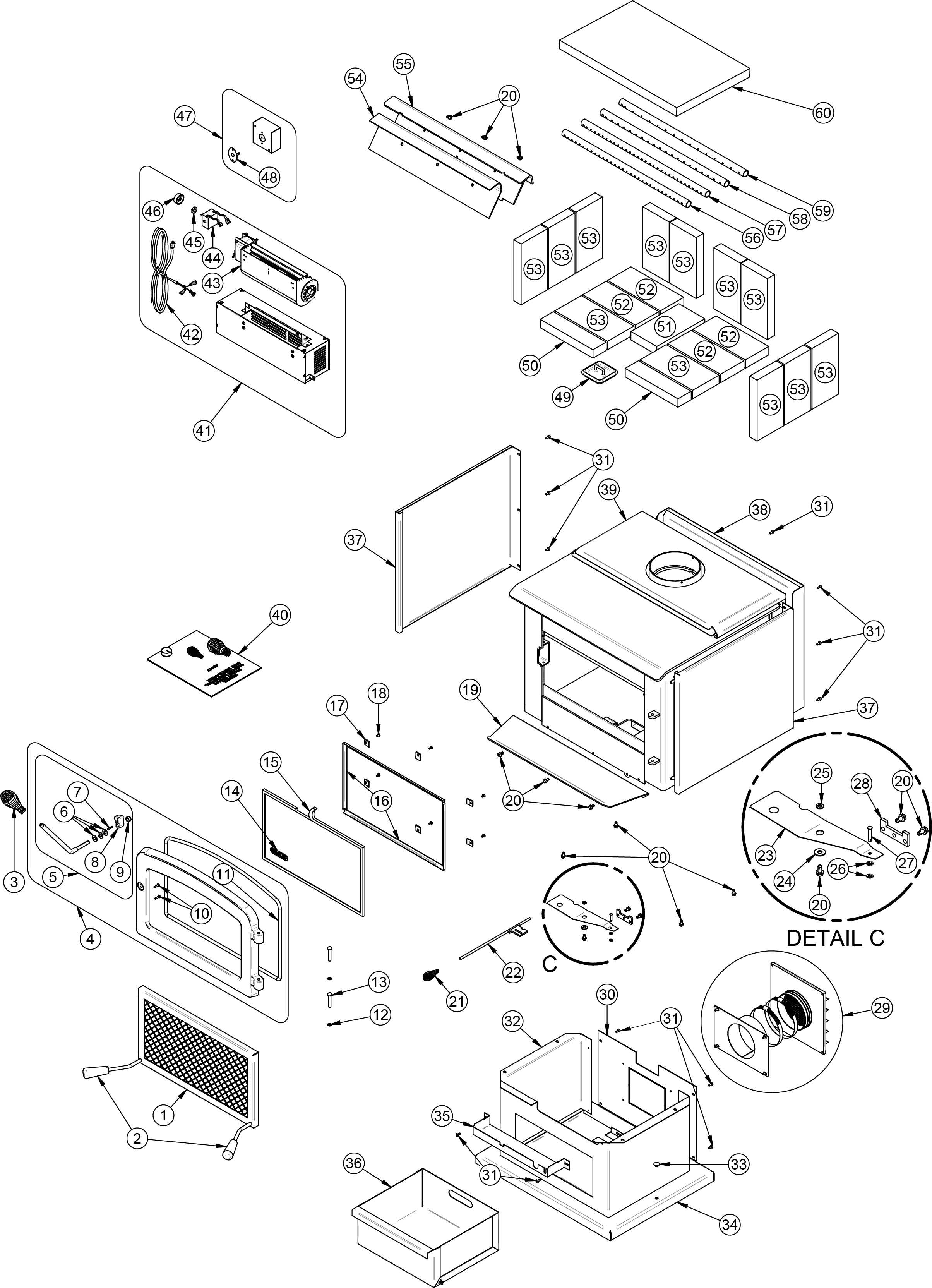

The reference plan contains the numbers used in the table below to identify parts.

#Part (sold individually)PriceAvailability
1AC01315
RIGID FIRESCREEN
1 / appliance (sold individually)
CAD $140.00--
230569
ROUND WOODEN HANDLE BLACK
2 / appliance (sold individually)
CAD $15.00--
3AC07867
1/2" CHROME COIL HANDLE
1 / appliance (sold individually)
CAD $8.00--
4SE24107
REMPLACEMENT DOOR WITH GASKET WITHOUT GLASS AND HANDLE
1 / appliance (sold individually)
CAD $230.00--
5AC09167
HANDLE & LATCH KIT
1 / appliance (sold individually)
CAD $40.00--
630205
ZINC WASHER ID 13/32" x OD 13/16"
3 / appliance (sold individually)
CAD $1.00--
730533
LATCH KEY PATH PIN
1 / appliance (sold individually)
CAD $3.00--
830033
STEEL DOOR LATCH
1 / appliance (sold individually)
CAD $20.00--
930224
LOCKNUT 3/8"-16 HEX
1 / appliance (sold individually)
CAD $2.00--
1030123
SCREW #8 - 32 x 5/8'' PAN QUADREX ZINC
2 / appliance (sold individually)
CAD $1.00--
11AC06500
SILICONE & 5/8" x 8' BLACK DOOR GASKET KIT
1 / appliance (sold individually)
CAD $17.00--
1230055
HINGE PIN RETAINING RING 5/16"ID x 0.512"OD
2 / appliance (sold individually)
CAD $5.00--
1330169
DOOR HINGE PIN 5/16"O x 1 3/4" L
2 / appliance (sold individually)
CAD $2.00--
14SE55103
10 3/16" x 17 1/8" REMPLACEMENT GLASS WITH GASKET
1 / appliance (sold individually)
CAD $200.00--
15AC06400
3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET
1 / appliance (sold individually)
CAD $11.00--
16PL55041
GLASS RETAINER FRAME
2 / appliance (sold individually)
CAD $15.00--
17SE53585
GLASS RETAINER KIT WITH SCREWS (12 UNITS)
1 / appliance (sold individually)
CAD $20.00--
1830124
SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC
6 / appliance (sold individually)
CAD $1.00--
19PL65566
ASH LIP
1 / appliance (sold individually)
CAD $60.00--
2030060
THREAD-CUTTING SCREW 1/4-20 x 1/2" F HEX STEEL SLOT WASHER C102 ZINC
11 / appliance (sold individually)
CAD $1.00--
21AC07866
1/4" BLACK COIL HANDLE
1 / appliance (sold individually)
CAD $7.00--
22SE65561
AIR CONTROL ROD ASSEMBLY
1 / appliance (sold individually)
CAD $26.00--
23PL65537
AIR CONTROL DAMPER
1 / appliance (sold individually)
CAD $39.00--
2430206
ZINC WASHER 5/16"IØ x 3/4"OØ
1 / appliance (sold individually)
CAD $1.00--
2530187
STAINLESS WASHER IØ 17/64" x 1/2" OØ
1 / appliance (sold individually)
CAD $1.00--
2630059
5/32" I⌀ PUSHNUT
2 / appliance (sold individually)
CAD $12.00--
2730064
3/16" x 1" CLEVIS PIN
1 / appliance (sold individually)
CAD $13.00--
28PL65572
AIR CONTROL ROD GUIDE
1 / appliance (sold individually)
CAD $5.00--
29AC01336
5"Ø FRESH AIR INTAKE KIT
1 / appliance (sold individually)
CAD $90.00--
30PL65565
REAR OF PEDESTAL
1 / appliance (sold individually)
CAD $39.00--
3130131
BLACK METAL SCREW #10 x 1/2" TYPE "A" PAN QUADREX
13 / appliance (sold individually)
CAD $2.00--
3299999
BUILD TO ORDER
1 / appliance (sold individually)
CAD $14.00--
3330418
FINISHING PLUG 3/8"
2 / appliance (sold individually)
CAD $16.00--
3499999
BUILD TO ORDER
1 / appliance (sold individually)
CAD $14.00--
35PL53664
AIR CONTROL COVER
1 / appliance (sold individually)
CAD $40.00--
36SE08304-03
ASH DRAWER
1 / appliance (sold individually)
CAD $85.00--
37PL65577
LEFT OR RIGHT DECORATIVE SIDE PANEL
2 / appliance (sold individually)
CAD $60.00--
3899999
BUILD TO ORDER
1 / appliance (sold individually)
CAD $14.00--
39SE53659
TOP AIR MATE
1 / appliance (sold individually)
CAD $90.00--
4099998
DISCONTINUED
1 / appliance (sold individually)
CAD $14.00--
41AC03095
BLOWER WITH VARIABLE SPEED CONTROL (UP TO 130 CFM)
1 / appliance (sold individually)
CAD $220.00--
4260013
POWER CORD 96" x 18-3
1 / appliance (sold individually)
CAD $20.00--
4344070
CROSSFLOW BLOWER 130 CFM 115V-60Hz-56W
1 / appliance (sold individually)
CAD $190.00--
4444080
RHEOSTAT WITHOUT NUT (AC-11)
1 / appliance (sold individually)
CAD $55.00--
4544087
RHEOSTAT NUT
1 / appliance (sold individually)
CAD $5.00--
4644085
RHEOSTAT KNOB
1 / appliance (sold individually)
CAD $8.00--
4844028
CERAMIC THERMODISC F110-20F
1 / appliance (sold individually)
CAD $25.00--
49SE16059
ASH PLUG
1 / appliance (sold individually)
CAD $25.00--
50PL36018
2 1/4" x 8 3/4" x 1 1/4" REFRACTORY BRICK
2 / appliance (sold individually)
CAD $10.00--
51PL36028
4 1/2" x 8 1/8" x 1 1/4" REFRACTORY BRICK
1 / appliance (sold individually)
CAD $10.00--
5229015
4" x 9" x 1 1/4" REFRACTORY BRICK
4 / appliance (sold individually)
CAD $10.00--
5329020
4 1/2" x 9" x 1 1/4" REFRACTORY BRICK HD
12 / appliance (sold individually)
CAD $5.50--
5421387
TOP AIR DEFLECTOR INSULATION
1 / appliance (sold individually)
CAD $15.00--
55PL65505
TOP AIR DEFLECTOR PROTECTOR
1 / appliance (sold individually)
CAD $40.00--
56PL65514
SECONDARY AIR TUBE
1 / appliance (sold individually)
CAD $50.00--
57PL65515
MIDDLE FRONT SECONDARY AIR TUBE
1 / appliance (sold individually)
CAD $45.00--
58PL65516
MIDDLE REAR SECONDARY AIR TUBE
1 / appliance (sold individually)
CAD $45.00--
59PL65517
REAR SECONDARY AIR TUBE
1 / appliance (sold individually)
CAD $45.00--
6021388
20" x 12 1/2" x 1 1/4" VERMICULITE BAFFLE
1 / appliance (sold individually)
CAD $55.00--

The number appears on the reference plan provided above the table.

Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
