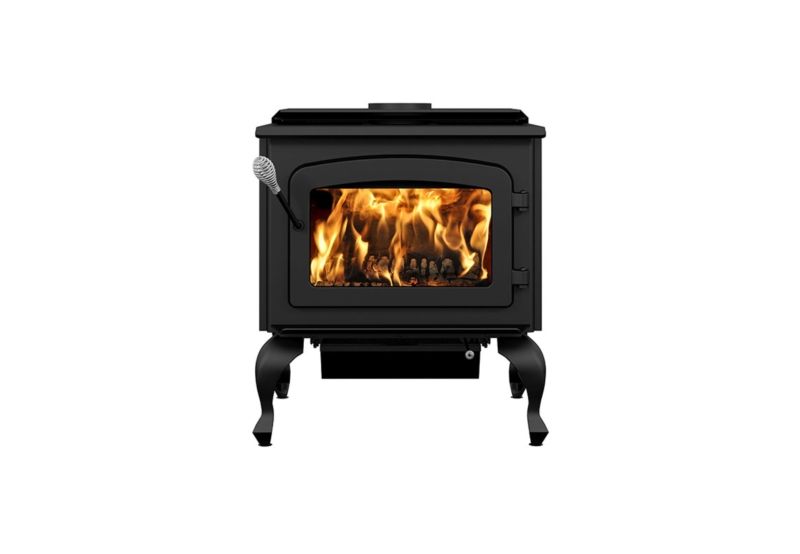

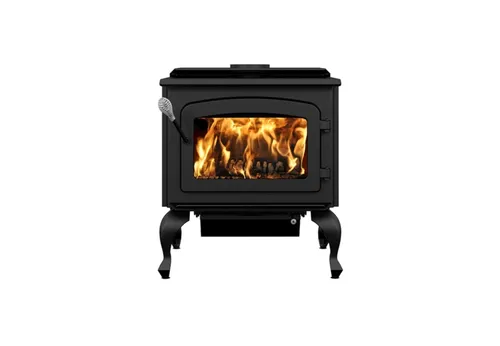

ESCAPE 1800 ON LEGS - BLACK DOOR

DB03105-1Serial Numbers: 10023 to 14800

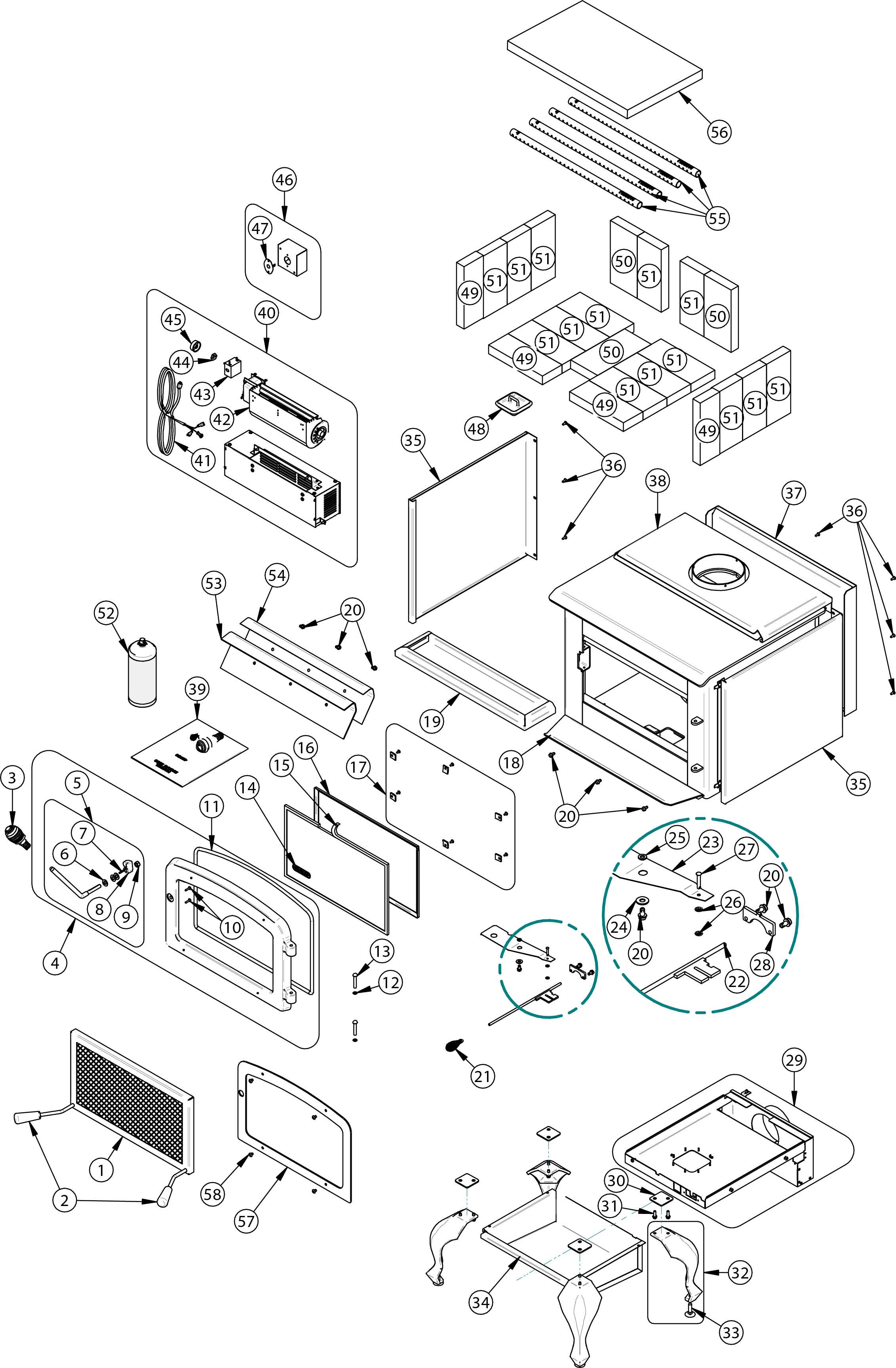

The reference plan contains the numbers used in the table below to identify parts.

#Part (sold individually)PriceAvailability
1AC01315
RIGID FIRESCREEN
1 / appliance (sold individually)
CAD $140.00--
230569
ROUND WOODEN HANDLE BLACK
2 / appliance (sold individually)
CAD $15.00--
3AC07867
1/2" CHROME COIL HANDLE
1 / appliance (sold individually)
CAD $8.00--
4SE24107-07
CAST IRON DOOR FOR OVERLAY WITH GASKET AND HANDLE
1 / appliance (sold individually)
CAD $210.00--
4SE24107-02
BLACK CAST IRON DOOR WITH GASKET AND HANDLE
1 / appliance (sold individually)
CAD $230.00--
5AC09167
HANDLE & LATCH KIT
1 / appliance (sold individually)
CAD $40.00--
630205
ZINC WASHER ID 13/32" x OD 13/16"
3 / appliance (sold individually)
CAD $1.00--
730533
LATCH KEY PATH PIN
1 / appliance (sold individually)
CAD $3.00--
830033
STEEL DOOR LATCH
1 / appliance (sold individually)
CAD $20.00--
930224
LOCKNUT 3/8"-16 HEX
1 / appliance (sold individually)
CAD $2.00--
1030123
SCREW #8 - 32 x 5/8'' PAN QUADREX ZINC
2 / appliance (sold individually)
CAD $1.00--
11AC06500
SILICONE & 5/8" x 8' BLACK DOOR GASKET KIT
1 / appliance (sold individually)
CAD $17.00--
1230055
HINGE PIN RETAINING RING 5/16"ID x 0.512"OD
2 / appliance (sold individually)
CAD $5.00--
1330169
DOOR HINGE PIN 5/16"O x 1 3/4" L
2 / appliance (sold individually)
CAD $2.00--
14SE55103
10 3/16" x 17 1/8" REMPLACEMENT GLASS WITH GASKET
1 / appliance (sold individually)
CAD $200.00--
15AC06400
3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET
1 / appliance (sold individually)
CAD $11.00--
16PL55041
GLASS RETAINER FRAME
2 / appliance (sold individually)
CAD $15.00--
17SE53585
GLASS RETAINER KIT WITH SCREWS (12 UNITS)
1 / appliance (sold individually)
CAD $20.00--
18PL65958
ASH LIP
1 / appliance (sold individually)
CAD $25.00--
19PL65955
ASH LIP
1 / appliance (sold individually)
CAD $60.00--
2030060
THREAD-CUTTING SCREW 1/4-20 x 1/2" F HEX STEEL SLOT WASHER C102 ZINC
9 / appliance (sold individually)
CAD $1.00--
21AC07865
1/4" CHROME COIL HANDLE
1 / appliance (sold individually)
CAD $7.00--
22SE65562
AIR CONTROL ROD ASSEMBLY
1 / appliance (sold individually)
CAD $10.00--
23PL65579
AIR CONTROL DAMPER
1 / appliance (sold individually)
CAD $10.00--
2430206
ZINC WASHER 5/16"IØ x 3/4"OØ
1 / appliance (sold individually)
CAD $1.00--
2530187
STAINLESS WASHER IØ 17/64" x 1/2" OØ
1 / appliance (sold individually)
CAD $1.00--
2630059
5/32" I⌀ PUSHNUT
2 / appliance (sold individually)
CAD $12.00--
2730064
3/16" x 1" CLEVIS PIN
1 / appliance (sold individually)
CAD $13.00--
28PL65563
DAMPER GUIDE
1 / appliance (sold individually)
CAD $20.00--
2999998
DISCONTINUED
1 / appliance (sold individually)
CAD $14.00--
30PL65548
LEG SPACER
4 / appliance (sold individually)
CAD $16.00--
3130094
HEX SCREW WASHER HEAD 1/4-20 x 3/4" F ZINC TYPE
8 / appliance (sold individually)
CAD $2.00--
32PL24098
BLACK CAST IRON LEG WITH LEVELING BOLT
4 / appliance (sold individually)
CAD $55.00--
3330050
LEVELING BOLT 3/8-16 x 1 1/2"
4 / appliance (sold individually)
CAD $8.00--
34SE53596
ASH DRAWER
1 / appliance (sold individually)
CAD $85.00--
35PL65577
LEFT OR RIGHT DECORATIVE SIDE PANEL
2 / appliance (sold individually)
CAD $60.00--
3630131
BLACK METAL SCREW #10 x 1/2" TYPE "A" PAN QUADREX
7 / appliance (sold individually)
CAD $2.00--
3799999
BUILD TO ORDER
1 / appliance (sold individually)
CAD $14.00--
38SE53659
TOP AIR MATE
1 / appliance (sold individually)
CAD $90.00--
3999998
DISCONTINUED
1 / appliance (sold individually)
CAD $14.00--
40AC03095
BLOWER WITH VARIABLE SPEED CONTROL (UP TO 130 CFM)
1 / appliance (sold individually)
CAD $220.00--
4160013
POWER CORD 96" x 18-3
1 / appliance (sold individually)
CAD $20.00--
4244070
CROSSFLOW BLOWER 130 CFM 115V-60Hz-56W
1 / appliance (sold individually)
CAD $190.00--
4344080
RHEOSTAT WITHOUT NUT (AC-11)
1 / appliance (sold individually)
CAD $55.00--
4444087
RHEOSTAT NUT
1 / appliance (sold individually)
CAD $5.00--
4544085
RHEOSTAT KNOB
1 / appliance (sold individually)
CAD $8.00--
46AC02055
QUICK CONNECT THERMODISC
1 / appliance (sold individually)
CAD $60.00--
4744028
CERAMIC THERMODISC F110-20F
1 / appliance (sold individually)
CAD $25.00--
48SE16059
ASH PLUG
1 / appliance (sold individually)
CAD $25.00--
4929007
3 1/4" x 9" x 1 1/4" REFRACTORY BRICK
4 / appliance (sold individually)
CAD $10.00--
5029010
4 1/2" x 9" x 1 1/4" REFRACTORY BRICK
3 / appliance (sold individually)
CAD $3.50--
5129015
4" x 9" x 1 1/4" REFRACTORY BRICK
14 / appliance (sold individually)
CAD $10.00--
52AC05959
METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL
1 / appliance (sold individually)
CAD $19.00--
5321387
TOP AIR DEFLECTOR INSULATION
1 / appliance (sold individually)
CAD $15.00--
54PL65505
TOP AIR DEFLECTOR PROTECTOR
1 / appliance (sold individually)
CAD $40.00--
55PL65514
SECONDARY AIR TUBE
4 / appliance (sold individually)
CAD $50.00--
5621388
20" x 12 1/2" x 1 1/4" VERMICULITE BAFFLE
1 / appliance (sold individually)
CAD $55.00--

The number appears on the reference plan provided above the table.

Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
