ESCAPE 1800-I

DB03125Serial Numbers: 4000 to ---SEE THE PRODUCT

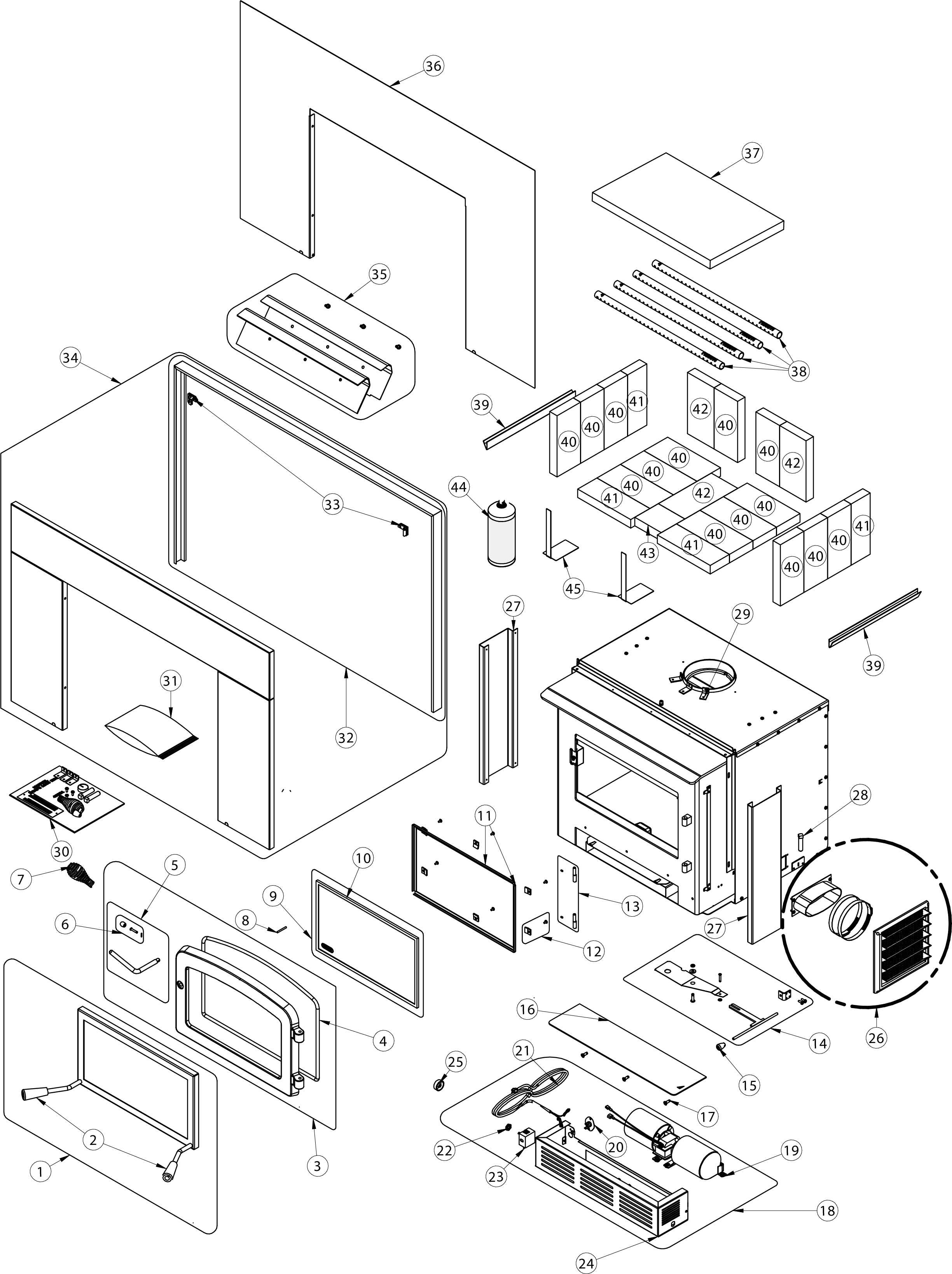

The reference plan contains the numbers used in the table below to identify parts.

#Part (sold individually)PriceAvailability
1AC01315
RIGID FIRESCREEN
1 / appliance (sold individually)
CAD $140.00--
2SE74166
HANDLE 30898 REPLACEMENT KIT
1 / appliance (sold individually)
CAD $36.00--
3SE24107-08
DOOR ASSEMBLY
1 / appliance (sold individually)
CAD $220.00--
4AC06500
SILICONE & 5/8" x 8' BLACK DOOR GASKET KIT
1 / appliance (sold individually)
CAD $17.00--
5SE70697
HANDLE WITH LATCH KIT
1 / appliance (sold individually)
CAD $40.00--
6AC09185
DOOR LATCH KIT
1 / appliance (sold individually)
CAD $30.00--
7AC07867
1/2" CHROME COIL HANDLE
1 / appliance (sold individually)
CAD $8.00--
830101
SPRING TENSION PIN 5/32"Ø x 1 1/2"L
1 / appliance (sold individually)
CAD $2.00--
9SE55103
10 3/16" x 17 1/8" REMPLACEMENT GLASS WITH GASKET
1 / appliance (sold individually)
CAD $200.00--
10AC06400
3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET
1 / appliance (sold individually)
CAD $11.00--
11PL55041
GLASS RETAINER FRAME
2 / appliance (sold individually)
CAD $15.00--
12SE53585
GLASS RETAINER KIT WITH SCREWS (12 UNITS)
1 / appliance (sold individually)
CAD $20.00--
13SE74167
DOOR HINGE REPLACEMENT KIT
1 / appliance (sold individually)
CAD $43.00--
14SE74169
INSERT PLATE KIT
1 / appliance (sold individually)
CAD $60.00--
1530102
1/4" CAST IRON AIR CONTROL HANDLE
1 / appliance (sold individually)
CAD $20.00--
16SE74124
ASSEMBLED ASH DRAWER
1 / appliance (sold individually)
CAD $110.00--
1730507
BLACK TORX SCREW WITH FLAT HEAD TYPE F 1/4-20 x 3/4"
3 / appliance (sold individually)
CAD $2.00--
18SE74125
BLOWER ASSEMBLY
1 / appliance (sold individually)
CAD $420.00--
1944089
DOUBLE CAGE BLOWER 144 CFM 115V - 60Hz - 1.1A
1 / appliance (sold individually)
CAD $220.00--
2044028
CERAMIC THERMODISC F110-20F
1 / appliance (sold individually)
CAD $25.00--
2160013
POWER CORD 96" x 18-3
1 / appliance (sold individually)
CAD $20.00--
2244087
RHEOSTAT NUT
1 / appliance (sold individually)
CAD $5.00--
2344080
RHEOSTAT WITHOUT NUT (AC-11)
1 / appliance (sold individually)
CAD $55.00--
2499998
DISCONTINUED
1 / appliance (sold individually)
CAD $14.00--
2544085
RHEOSTAT KNOB
1 / appliance (sold individually)
CAD $8.00--
26AC01298
5"Ø FRESH AIR INTAKE KIT
1 / appliance (sold individually)
CAD $75.00--
27PL53722
RIGHT DECORATIVE PANEL
2 / appliance (sold individually)
CAD $60.00--
2830337
SQUARE HEAD SET SCREW 1/2-13 x 1-3/4"
2 / appliance (sold individually)
CAD $5.00--
29PL34052
LINER FIXATION BRACKET
1 / appliance (sold individually)
CAD $5.00--
3099998
DISCONTINUED
1 / appliance (sold individually)
CAD $14.00--
31SE15097
FACEPLATE HARDWARE KIT
1 / appliance (sold individually)
CAD $25.00--
32OA10123
BRUSHED NICKEL FACEPLATE TRIMS (29" X 44")
1 / appliance (sold individually)
CAD $130.00--
32OA10129
BRUSHED NICKEL FACEPLATE TRIMS (32" x 50")
1 / appliance (sold individually)
CAD $130.00--
3330456
AMS HARDWARE KIT (TAPPED CORNERS AND BACK PLATES)
1 / appliance (sold individually)
CAD $5.00--
34AC03375
LARGE FACEPLATE 32" x 50" WITH NICKEL TRIM KIT
1 / appliance (sold individually)
CAD $170.00--
34AC03370
REGULAR FACEPLATE 29" x 44" WITH NICKEL TRIM KIT
1 / appliance (sold individually)
CAD $140.00--
35SE65505
TOP AIR DEFLECTOR PROTECTOR KIT
1 / appliance (sold individually)
CAD $70.00--
36AC01357
32" x 50" CUTTABLE FACEPLATE (18 GA)
1 / appliance (sold individually)
CAD $180.00--
3721388
20" x 12 1/2" x 1 1/4" VERMICULITE BAFFLE
1 / appliance (sold individually)
CAD $55.00--
38PL65514
SECONDARY AIR TUBE
4 / appliance (sold individually)
CAD $50.00--
39PL65127
FLOORED BRICK RETAINER
2 / appliance (sold individually)
CAD $26.00--
4029015
4" x 9" x 1 1/4" REFRACTORY BRICK
14 / appliance (sold individually)
CAD $10.00--
4129007
3 1/4" x 9" x 1 1/4" REFRACTORY BRICK
4 / appliance (sold individually)
CAD $10.00--
4229010
4 1/2" x 9" x 1 1/4" REFRACTORY BRICK
3 / appliance (sold individually)
CAD $3.50--
4329004
4" x 4 1/2" x 1 1/4" REFRACTORY BRICK
1 / appliance (sold individually)
CAD $24.00--
44AC05959
METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL
1 / appliance (sold individually)
CAD $19.00--
45PL74170
LOG RETAINERS
2 / appliance (sold individually)
CAD $15.00--

The number appears on the reference plan provided above the table.

Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
