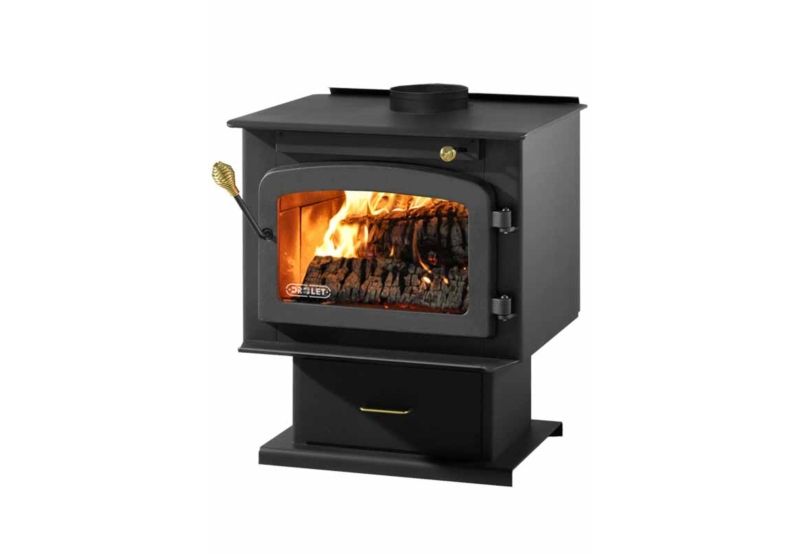

EASTWOOD 1800
DB03160Serial Numbers: 115 to 1490

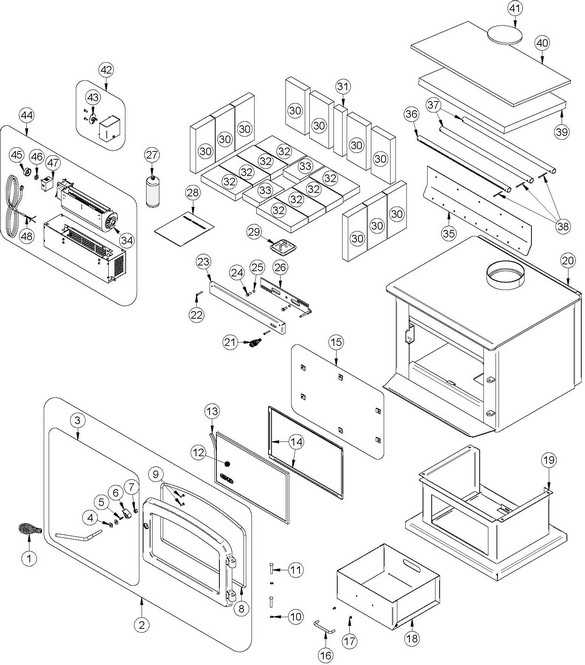

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | AC07860 1/2" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 2 | SE24107 REMPLACEMENT DOOR WITH GASKET WITHOUT GLASS AND HANDLE 1 / appliance (sold individually) | CAD $230.00 | -- | |
| 3 | AC09171 REMPLACEMENT HANDLE & LATCH KIT 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 4 | 30205 ZINC WASHER ID 13/32" x OD 13/16" 3 / appliance (sold individually) | CAD $1.00 | -- | |
| 5 | 30533 LATCH KEY PATH PIN 1 / appliance (sold individually) | CAD $3.00 | -- | |
| 6 | 30033 STEEL DOOR LATCH 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 7 | 30224 LOCKNUT 3/8"-16 HEX 1 / appliance (sold individually) | CAD $2.00 | -- | |
| 8 | AC06500 SILICONE & 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $17.00 | -- | |
| 9 | 30123 SCREW #8 - 32 x 5/8'' PAN QUADREX ZINC 2 / appliance (sold individually) | CAD $1.00 | -- | |
| 10 | 30055 HINGE PIN RETAINING RING 5/16"ID x 0.512"OD 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 11 | 30169 DOOR HINGE PIN 5/16"O x 1 3/4" L 2 / appliance (sold individually) | CAD $2.00 | -- | |
| 12 | SE55103 10 3/16" x 17 1/8" REMPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | CAD $200.00 | -- | |
| 13 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | CAD $11.00 | -- | |
| 14 | PL55041 GLASS RETAINER FRAME 2 / appliance (sold individually) | CAD $15.00 | -- | |
| 15 | SE53585 GLASS RETAINER KIT WITH SCREWS (12 UNITS) 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 16 | 28060 GOLD ASH DRAWER HANDLE 1 / appliance (sold individually) | CAD $21.00 | -- | |
| 17 | 30124 SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC 2 / appliance (sold individually) | CAD $1.00 | -- | |
| 18 | SE47076 ASH DRAWER 1 / appliance (sold individually) | CAD $70.00 | -- | |
| 19 | 99999 BUILD TO ORDER 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 20 | 99999 BUILD TO ORDER 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 21 | AC07864 1/4" BRASS LONG COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 22 | 30125 MECHANICAL SCREW #8 x 1 1/4" QUADREX ZINC 2 / appliance (sold individually) | CAD $1.00 | -- | |
| 23 | 99998 DISCONTINUED 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 24 | 30094 HEX SCREW WASHER HEAD 1/4-20 x 3/4" F ZINC TYPE 2 / appliance (sold individually) | CAD $2.00 | -- | |
| 25 | 30428 BUSHING 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 26 | SE55013 AIR CONTROL SLIDE 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 27 | AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL 1 / appliance (sold individually) | CAD $19.00 | -- | |
| 28 | 99998 DISCONTINUED 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 29 | SE16059 ASH PLUG 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 30 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 10 / appliance (sold individually) | CAD $3.50 | -- | |
| 31 | PL36056 2" x 9" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 32 | 29000 4" x 8" x 1 1/4" REFRACTORY BRICK 8 / appliance (sold individually) | CAD $3.50 | -- | |
| 33 | PL36057 4" x 5 3/4" x 1 1/4" REFRACTORY BRICK 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 34 | 44070 CROSSFLOW BLOWER 130 CFM 115V-60Hz-56W 1 / appliance (sold individually) | CAD $190.00 | -- | |
| 35 | SE55004 DEFLECTOR REPAIR KIT 1 / appliance (sold individually) | CAD $85.00 | -- | |
| 36 | PL55038 FRONT SECONDARY AIR TUBE 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 37 | PL55037 MIDDLE OR REAR SECONDARY AIR TUBE 2 / appliance (sold individually) | CAD $75.00 | -- | |
| 38 | SE36250 1/8" x 1 1/2" STAINLESS STEEL COTTER PIN (12 UNITS) 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 39 | 21202 VERMICULITE BAFFLE 20" x 14 1/2" x 1 1/4" 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 40 | 21137 13 1/2" x 24" x 1/2" BAFFLE INSULATION 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 41 | PL34026 BAFFLE INSULATION WEIGHT 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 42 | AC02055 QUICK CONNECT THERMODISC 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 43 | 44028 CERAMIC THERMODISC F110-20F 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 44 | AC03095 BLOWER WITH VARIABLE SPEED CONTROL (UP TO 130 CFM) 1 / appliance (sold individually) | CAD $220.00 | -- | |
| 45 | 44087 RHEOSTAT NUT 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 46 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 47 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 48 | 60013 POWER CORD 96" x 18-3 1 / appliance (sold individually) | CAD $20.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
