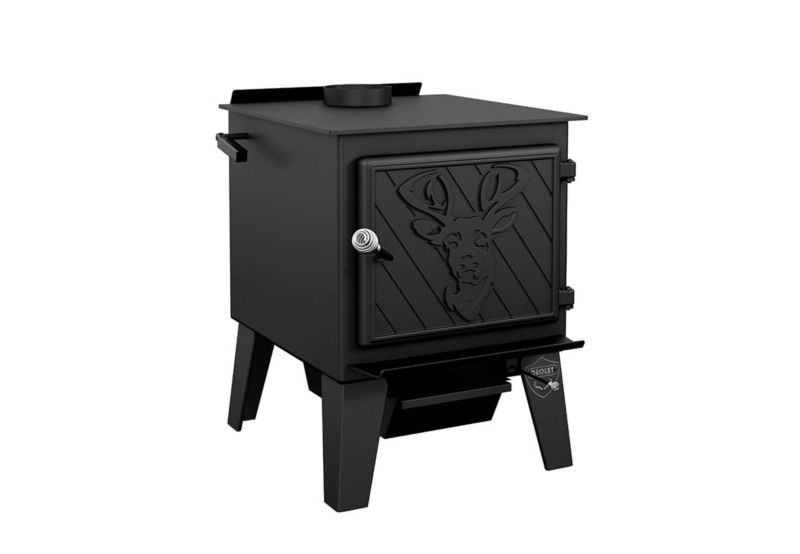

BLACK STAG
DB03410Serial Numbers: 95 to 1074

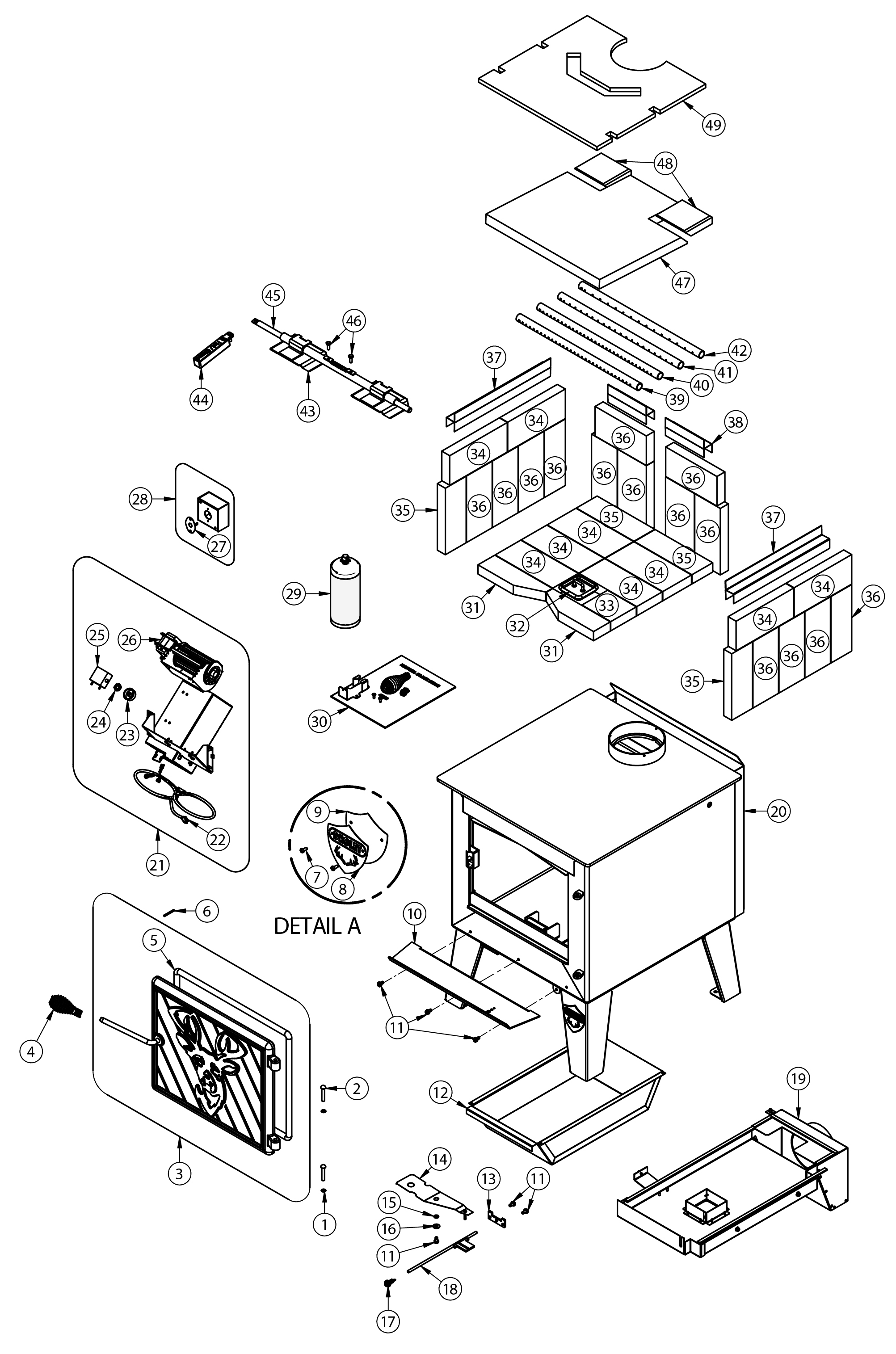

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | 30055 HINGE PIN RETAINING RING 5/16"ID x 0.512"OD 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 2 | 30169 DOOR HINGE PIN 5/16"O x 1 3/4" L 2 / appliance (sold individually) | CAD $2.00 | -- | |
| 3 | SE24270 DOOR ASSEMBLY WITH GASKET AND HANDLE 1 / appliance (sold individually) | CAD $370.00 | -- | |
| 4 | AC07867 1/2" CHROME COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 5 | AC06500 SILICONE & 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $17.00 | -- | |
| 6 | 30101 SPRING TENSION PIN 5/32"Ø x 1 1/2"L 1 / appliance (sold individually) | CAD $2.00 | -- | |
| 7 | 30138 METAL SCREW #6 - 3/8" QUADREX "A" TYPE BLACK 2 / appliance (sold individually) | CAD $12.00 | -- | |
| 8 | PL30584 DROLET LOGO BLACK STAG 1 / appliance (sold individually) | CAD $24.00 | -- | |
| 9 | PL30587 DECORATIVE PANEL 1 / appliance (sold individually) | CAD $19.00 | -- | |
| 10 | PL30577 ASH LIP 1 / appliance (sold individually) | CAD $29.00 | -- | |
| 11 | 30060 THREAD-CUTTING SCREW 1/4-20 x 1/2" F HEX STEEL SLOT WASHER C102 ZINC 6 / appliance (sold individually) | CAD $1.00 | -- | |
| 12 | SE30551 ASH DRAWER 1 / appliance (sold individually) | CAD $110.00 | -- | |
| 13 | PL65572 AIR CONTROL ROD GUIDE 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 14 | PL30523 PRIMARY AIR CONTROL PLATE 1 / appliance (sold individually) | CAD $21.00 | -- | |
| 15 | 30187 STAINLESS WASHER IØ 17/64" x 1/2" OØ 1 / appliance (sold individually) | CAD $1.00 | -- | |
| 16 | 30206 ZINC WASHER 5/16"IØ x 3/4"OØ 1 / appliance (sold individually) | CAD $1.00 | -- | |
| 17 | 232 1/4" GOLD HANDLE (HM95) 1 / appliance (sold individually) | CAD $21.00 | -- | |
| 18 | SE30525 AIR CONTROLE ROD ASSEMBLY 1 / appliance (sold individually) | CAD $29.00 | -- | |
| 19 | 99998 DISCONTINUED 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 20 | 99999 BUILD TO ORDER 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 21 | AC02050 BLOWER WITH VARIABLE SPEED CONTROL | 100 CFM 1 / appliance (sold individually) | CAD $180.00 | -- | |
| 22 | 60013 POWER CORD 96" x 18-3 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 23 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 24 | 44087 RHEOSTAT NUT 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 25 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 26 | 44073 CROSSFLOW BLOWER 115V-60Hz-39W 100 CFM 1 / appliance (sold individually) | CAD $200.00 | -- | |
| 27 | 44028 CERAMIC THERMODISC F110-20F 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 28 | AC02055 QUICK CONNECT THERMODISC 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 29 | AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL 1 / appliance (sold individually) | CAD $19.00 | -- | |
| 30 | 99998 DISCONTINUED 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 31 | PL36226 2 5/8" x 9" x 1" x 3 1/2" REFRACTORY BRICK 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 32 | SE16059 ASH PLUG 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 33 | 29004 4" x 4 1/2" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | CAD $24.00 | -- | |
| 34 | 29015 4" x 9" x 1 1/4" REFRACTORY BRICK 9 / appliance (sold individually) | CAD $10.00 | -- | |
| 35 | 29007 3 1/4" x 9" x 1 1/4" REFRACTORY BRICK 4 / appliance (sold individually) | CAD $10.00 | -- | |
| 36 | 29000 4" x 8" x 1 1/4" REFRACTORY BRICK 14 / appliance (sold individually) | CAD $3.50 | -- | |
| 37 | PL56286 BRICK RETAINER 2 / appliance (sold individually) | CAD $25.00 | -- | |
| 38 | PL30518 BRICK RETAINER-REAR 2 / appliance (sold individually) | CAD $15.00 | -- | |
| 39 | PL30514 FRONT SECONDARY AIR TUBE #4 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 40 | PL30515 MIDDLE FRONT SECONDARY AIR TUBE #3 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 41 | PL30516 MIDDLE REAR SECONDARY AIR TUBE #2 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 42 | PL30517 REAR SECONDARY AIR TUBE #1 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 43 | SE30554 SMOKE BY-PASS DAMPER 1 / appliance (sold individually) | CAD $140.00 | -- | |
| 44 | 30854 BLACK COUNTER-WEIGHT 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 45 | 30852 BY-PASS DAMPER ROD 1 / appliance (sold individually) | CAD $40.00 | -- | |
| 46 | 30785 MECHANICAL SCREW 1/4-20 x 3/4" STAINLESS HEX 2 / appliance (sold individually) | CAD $12.00 | -- | |
| 47 | 21489 VERMICULITE BAFFLE 17 3/4" x 17 15/32" x 1 1/4" 1 / appliance (sold individually) | CAD $65.00 | -- | |
| 48 | 21427 4 3/4" x 4 3/8" x 1 1/4" BYPASS MECHANISM INSULATION 2 / appliance (sold individually) | CAD $35.00 | -- | |
| 49 | 21416 18 1/2" x 17" x 1/2" C-CAST TOP INSULATION 1 / appliance (sold individually) | CAD $180.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
