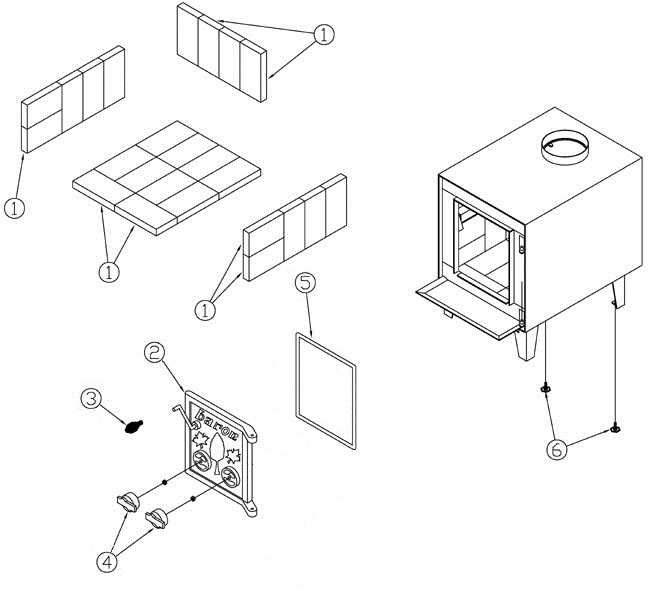

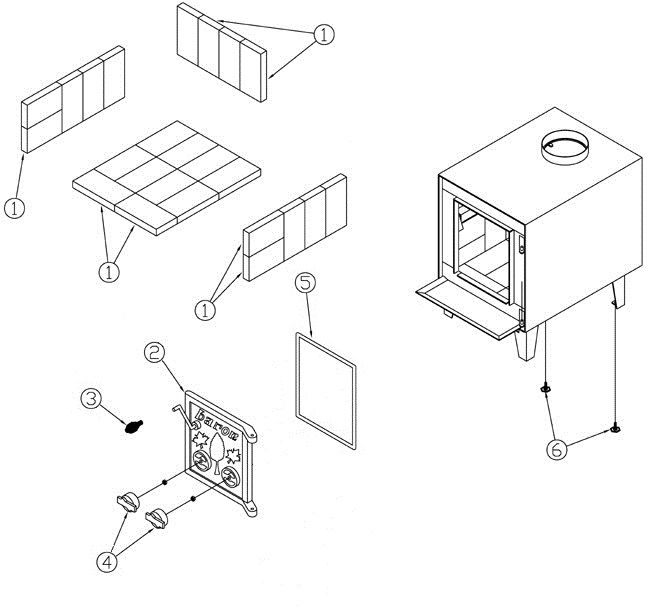

The reference plan contains the numbers used in the table below to identify parts.
# | Part (sold individually) | Price | Availability | |
---|---|---|---|---|
1 | 29020 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK HD 27 / appliance (sold individually) | CAD $5.50 | -- | |
2 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
3 | AC07867 1/2" CHROME COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
4 | AC05970 CAST IRON DRAFT CONTROL WITH NUTS & BOLT 2 / appliance (sold individually) | CAD $27.00 | -- | |
5 | AC06000 SILICONE & 1/2" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $15.00 | -- | |
6 | 30050 LEVELING BOLT 3/8-16 x 1 1/2" 2 / appliance (sold individually) | CAD $7.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
