BISTRO
DB04815-1Serial Numbers: 100 to 699

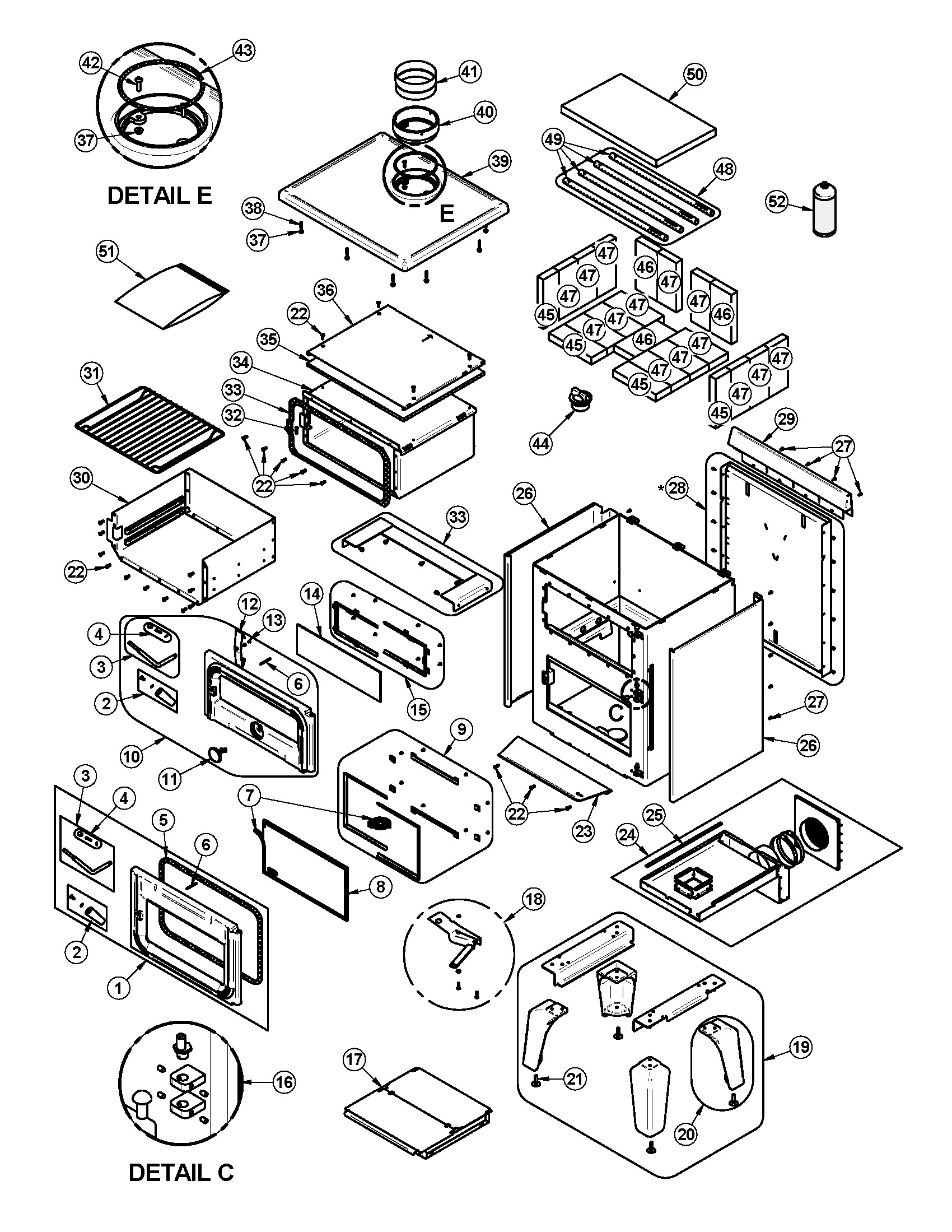

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | SE24360 OVEN BISTRO DOOR ASSEMBLY 1 / appliance (sold individually) | CAD $310.00 | -- | |
| 2 | SE31234 CLEAR VARNISHED WOOD HANDLE AND HARDWARE (2 UNITS) 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 3 | SE74531 BISTRO DOOR HANDLE ROD KIT 2 / appliance (sold individually) | CAD $41.00 | -- | |
| 4 | AC09185 DOOR LATCH KIT 2 / appliance (sold individually) | CAD $30.00 | -- | |
| 5 | AC06500 SILICONE & 5/8" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $17.00 | -- | |
| 6 | 31243 PLAIN FINISH STEEL SLOTTED SRPING PIN 3/16"Ø x 2"L 2 / appliance (sold individually) | CAD $13.00 | -- | |
| 7 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 2 / appliance (sold individually) | CAD $11.00 | -- | |
| 8 | SE74520 17 5/8'' x 9 9/16'' GLASS WITH GASKET 1 / appliance (sold individually) | CAD $140.00 | -- | |
| 9 | SE74521 BISTRO GLASS RETAINER KIT 1 / appliance (sold individually) | CAD $90.00 | -- | |
| 10 | SE24359 OVEN BISTRO DOOR ASSEMBLY 1 / appliance (sold individually) | CAD $310.00 | -- | |
| 11 | 31227 COOK STOVE THERMOMETER 1 / appliance (sold individually) | CAD $39.00 | -- | |
| 12 | PL74524 SHOCK-ABSORBER 1 / appliance (sold individually) | CAD $39.00 | -- | |
| 13 | 30124 SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC 2 / appliance (sold individually) | CAD $1.00 | -- | |
| 14 | SE74522 17 5/8'' x 5 1/2'' GLASS WITH GASKET 1 / appliance (sold individually) | CAD $80.00 | -- | |
| 15 | SE74523 BISTRO OVEN GLASS RETAINER KIT 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 16 | SE31226 COMPLETE HINGE PIN KIT 1 / appliance (sold individually) | CAD $65.00 | -- | |
| 17 | SE65867 ASH DRAWER ASSEMBLY 1 / appliance (sold individually) | CAD $140.00 | -- | |
| 18 | SE74542 AIR CONTROL DAMPER ASSEMBLY 1 / appliance (sold individually) | CAD $40.00 | -- | |
| 19 | SE74512 SUPPORT AND LEGS KIT 1 / appliance (sold individually) | CAD $220.00 | -- | |
| 20 | SE24362 LEG WITH ELEVATOR BOLT 1 / appliance (sold individually) | CAD $140.00 | -- | |
| 21 | 30050 LEVELING BOLT 3/8-16 x 1 1/2" 4 / appliance (sold individually) | CAD $8.00 | -- | |
| 22 | 30507 BLACK TORX SCREW WITH FLAT HEAD TYPE F 1/4-20 x 3/4" 17 / appliance (sold individually) | CAD $2.00 | -- | |
| 23 | PL74533 BISTRO ASH SHELF 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 24 | AC01211 5"Ø FRESH AIR INTAKE KIT FOR WOOD STOVE ON LEGS 1 / appliance (sold individually) | CAD $140.00 | -- | |
| 25 | AC06810 1/8" x 3/8" x 6' SELF-ADHESIVE BLACK GASKET 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 26 | PL74516 DECORATIVE SIDE 2 / appliance (sold individually) | CAD $110.00 | -- | |
| 27 | 30154 BLACK ZINC SCREW #10 x 5/8" QUADREX #2 TYPE A 14 / appliance (sold individually) | CAD $12.00 | -- | |
| 28 | SE74514 REAR HEAT SHIELD ASSEMBLY 1 / appliance (sold individually) | CAD $180.00 | -- | |
| 29 | PL74525 BACK-SPLASH 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 30 | SE74507 OVEN INTERIOR 1 / appliance (sold individually) | CAD $220.00 | -- | |
| 31 | 31224 BISTRO GRILL COOK STOVE 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 32 | 30506 BLACK SCREW PAN TORX TYPE F 1/4-20 x 1" 1 / appliance (sold individually) | CAD $1.00 | -- | |
| 33 | AC06950 1" x 1/8" x 9' SELF-ADHESIVE GASKET 1 / appliance (sold individually) | CAD $17.00 | -- | |
| 34 | SE74504 OVEN ASSEMBLY 1 / appliance (sold individually) | CAD $310.00 | -- | |
| 35 | 21635 17" x 20 5/16" x 1/2" INSULATION 1 / appliance (sold individually) | CAD $34.00 | -- | |
| 36 | PL74534 INSULATING PROTECTIVE 1 / appliance (sold individually) | CAD $100.00 | -- | |
| 37 | 30782 HEX FLANGE NUT SERRATED 1/4-20 STAINLESS 18-8 12 / appliance (sold individually) | CAD $1.00 | -- | |
| 38 | 30128 SOCKET SET SCREW 1/4"-20 x 1 1/4" 10 / appliance (sold individually) | CAD $2.00 | -- | |
| 39 | SE24361 TOP ASSEMBLY 1 / appliance (sold individually) | CAD $390.00 | -- | |
| 40 | PL24365 CAST IRON SPIGOT PAINTED 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 41 | PL36899 DOUBLE WALL ADAPTOR 1 / appliance (sold individually) | CAD $36.00 | -- | |
| 42 | 30024 1/4-20 x 1" MECHANICAL SCREW PAN QUADREX ZINC 2 / appliance (sold individually) | CAD $1.00 | -- | |
| 43 | AC06815 3/16" x 5' BLACK GASKET & SILICONE KIT 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 44 | 24096 ROUND CAST IRON ASH PLUG 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 45 | 29007 3 1/4" x 9" x 1 1/4" REFRACTORY BRICK 3 / appliance (sold individually) | CAD $10.00 | -- | |
| 46 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 4 / appliance (sold individually) | CAD $3.50 | -- | |
| 47 | 29015 4" x 9" x 1 1/4" REFRACTORY BRICK 14 / appliance (sold individually) | CAD $10.00 | -- | |
| 48 | SE65514 SECONDARY AIR TUBE KIT 1 / appliance (sold individually) | CAD $220.00 | -- | |
| 49 | PL65514 SECONDARY AIR TUBE 4 / appliance (sold individually) | CAD $50.00 | -- | |
| 50 | 21388 20" x 12 1/2" x 1 1/4" VERMICULITE BAFFLE 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 51 | 99998 DISCONTINUED 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 52 | AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL 1 / appliance (sold individually) | CAD $19.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
