JASPER - N.E.
DB05140--

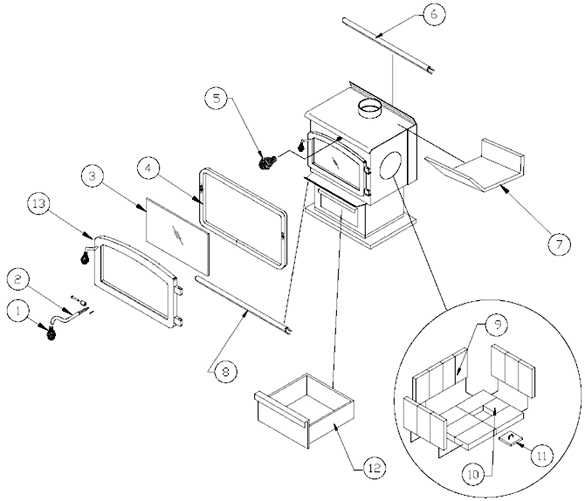

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | AC07862 3/8" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $12.00 | -- | |
| 2 | AC09155 HANDLE & LATCH KIT 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 2 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 3 | SE03734-09 7 13/16" x 16 1/16" x 8 3/4" ARCHED REPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | CAD $180.00 | -- | |
| 4 | AC06100 SILICONE & 1/4" x 1/2" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 5 | AC07861 1/4" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $7.00 | -- | |
| 6 | PL04647-02 GEM 1200 BACK HEAT SHIELD MOULDING 1 / appliance (sold individually) | CAD $41.00 | -- | |
| 7 | PL03607 GEMINI-1200 -COMPAK BAFFLE 1 / appliance (sold individually) | CAD $45.00 | -- | |
| 8 | PL04610-01 ASH LIP DECORATIVE TRIM 1 / appliance (sold individually) | CAD $41.00 | -- | |
| 9 | PL36025 2 1/2" x 8" x 1 1/4" REFRACTORY BRICK 17 / appliance (sold individually) | CAD $10.00 | -- | |
| 10 | PL36049 4 1/2" x 4 1/2" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 11 | SE08602 ASH DUMP PLUG 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 12 | SE08304-01 ASH DRAWER 1 / appliance (sold individually) | CAD $70.00 | -- | |
| 13 | 99998 DISCONTINUED 1 / appliance (sold individually) | CAD $14.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
