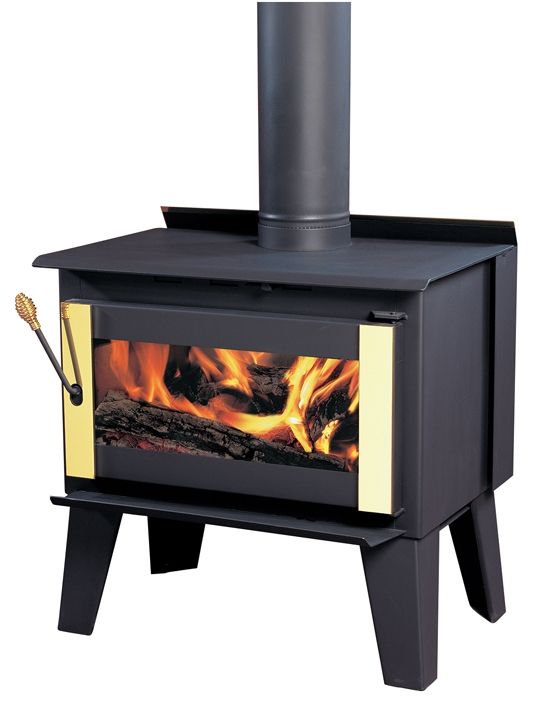

GEMINI 1500 - STEEL DOOR N.E.
DB05155PA--

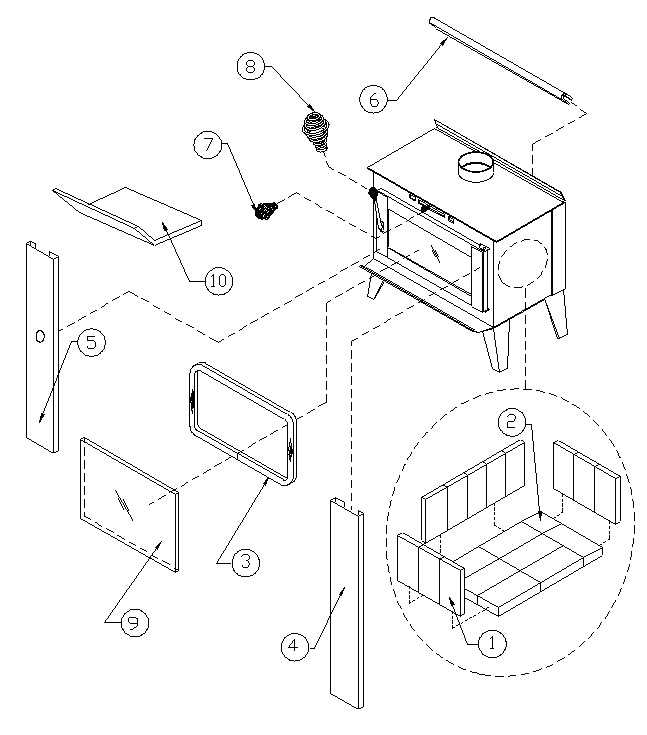

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 17 / appliance (sold individually) | CAD $3.50 | -- | |
| 2 | PL36049 4 1/2" x 4 1/2" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 3 | AC06100 SILICONE & 1/4" x 1/2" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 4 | 99998 DISCONTINUED 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 5 | 99998 DISCONTINUED 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 6 | 99998 DISCONTINUED 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 7 | AC07861 1/4" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $7.00 | -- | |
| 8 | AC07862 3/8" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $12.00 | -- | |
| 9 | SE04935-04 REMPLACEMENT GLASS WITH GASKET FOR STEEL DOOR GEMINI 1500 1 / appliance (sold individually) | CAD $190.00 | -- | |
| 10 | 99998 DISCONTINUED 1 / appliance (sold individually) | CAD $14.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
