HT-2000 DE LUXE - CAST IRON DOOR

DB05181--

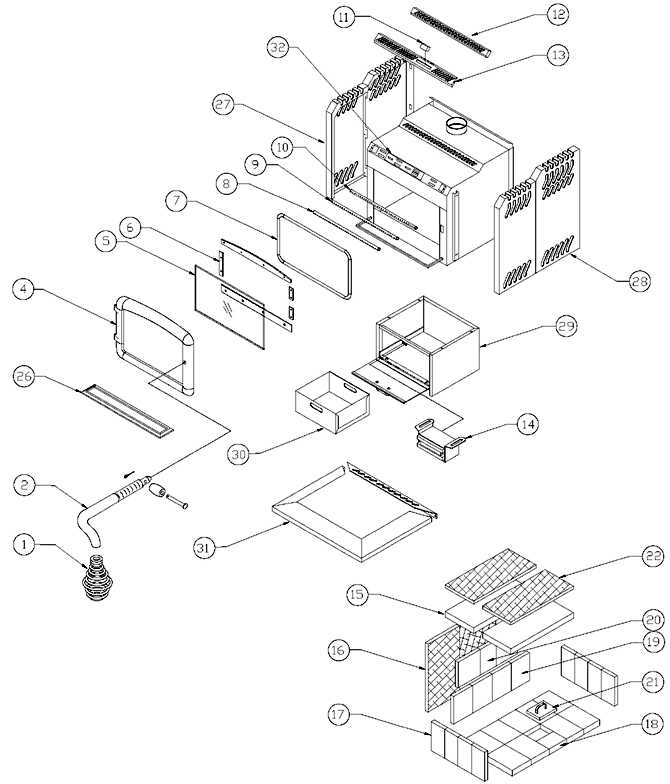

The reference plan contains the numbers used in the table below to identify parts.

#Part (sold individually)PriceAvailability
1AC07860
1/2" BRASS COIL HANDLE
1 / appliance (sold individually)
CAD $8.00--
2AC09185
DOOR LATCH KIT
1 / appliance (sold individually)
CAD $30.00--
2AC09160
HANDLE &LATCH KIT
1 / appliance (sold individually)
CAD $60.00--
4SE24021B
DOOR WITH GASKET AND HANDLE WITHOUT GLASS
1 / appliance (sold individually)
CAD $230.00--
5SE20009
10 3/8" x 17 1/8" REMPLACEMENT GLASS WITH GASKET
1 / appliance (sold individually)
CAD $180.00--
6PL20016
LONG SIDE GLASS RETAINER
1 / appliance (sold individually)
CAD $15.00--
7AC06000
SILICONE & 1/2" x 8' BLACK DOOR GASKET KIT
1 / appliance (sold individually)
CAD $15.00--
8PL07718-02
FRONT SECONDARY AIR TUBE NEUTRAL
1 / appliance (sold individually)
CAD $65.00--
9PL07718-01
MIDDLE SECONDARY AIR TUBE RED
1 / appliance (sold individually)
CAD $65.00--
10PL07718-03
REAR SECONDARY AIR TUBE YELLOW
1 / appliance (sold individually)
CAD $65.00--
11PL06728
AIR CONTROL HANDLE
1 / appliance (sold individually)
CAD $20.00--
12PL07727-01
GOLD PLATED AIR OUTLET DECORATIVE GRILL
1 / appliance (sold individually)
CAD $110.00--
13PL07727
GOLD PLATED AIR CONTROL DECORATIVE GRILL
1 / appliance (sold individually)
CAD $95.00--
1430454
DOUBLE MAGNET
1 / appliance (sold individually)
CAD $10.00--
157725-02
C-CAST BAFFLE 8 7/16" x 24"
2 / appliance (sold individually)
CAD $140.00--
16PL07712
REAR INSULATION
2 / appliance (sold individually)
CAD $35.00--
1729010
4 1/2" x 9" x 1 1/4" REFRACTORY BRICK
1 / appliance (sold individually)
CAD $3.50--
18PL36049
4 1/2" x 4 1/2" x 1 1/4" REFRACTORY BRICK
1 / appliance (sold individually)
CAD $10.00--
1929005
6" x 8 1/4" x 1 1/4" REFRACTORY BRICK HD
6 / appliance (sold individually)
CAD $5.00--
20PL36029
5 7/8" x 6" x 1 1/4" REFRACTORY BRICK
1 / appliance (sold individually)
CAD $10.00--
21SE02000-02
ASH DUMP COVER
1 / appliance (sold individually)
CAD $35.00--
22PL07711
BAFFLE INSULATION 8 1/2" x 24" x 1/2"
2 / appliance (sold individually)
CAD $20.00--
23PL20014
TOP GLASS RETAINER
1 / appliance (sold individually)
CAD $15.00--
24PL20015
SHORT SIDE GLASS RETAINER
1 / appliance (sold individually)
CAD $15.00--
25PL20013
BOTTOM GLASS RETAINER
1 / appliance (sold individually)
CAD $15.00--
2699998
DISCONTINUED
1 / appliance (sold individually)
----
2799998
DISCONTINUED
1 / appliance (sold individually)
----
2899998
DISCONTINUED
1 / appliance (sold individually)
----
2999998
DISCONTINUED
1 / appliance (sold individually)
----
3099998
DISCONTINUED
1 / appliance (sold individually)
----
3199998
DISCONTINUED
1 / appliance (sold individually)
----
32SE07726
AIR CONTROL SLIDE
1 / appliance (sold individually)
CAD $20.00--

The number appears on the reference plan provided above the table.

Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
