DB05310
SAWYER
--

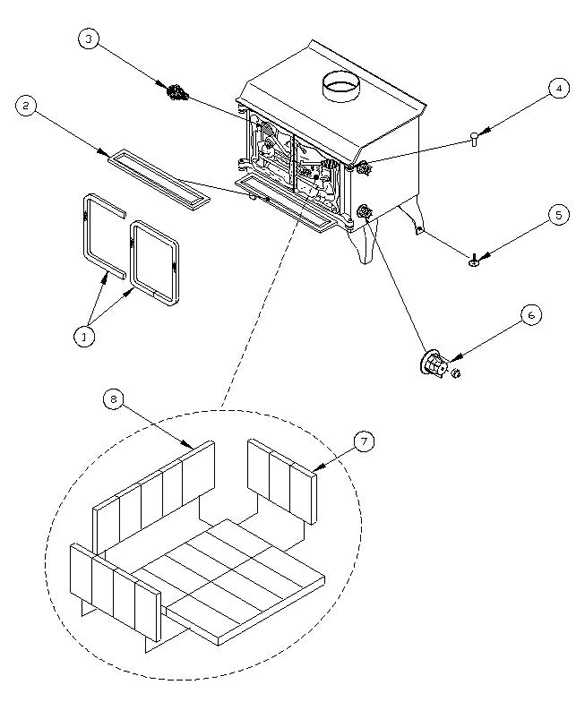

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | AC06100 SILICONE & 1/4" x 1/2" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 2 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 3 | AC07860 1/2" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 4 | AC05942 2 UNERVERSAL HINGE PIN KIT 5/16"Ø x 2"L WITH CUTTER PINS 2 / appliance (sold individually) | CAD $25.00 | -- | |
| 5 | 30050 LEVELING BOLT 3/8-16 x 1 1/2" 2 / appliance (sold individually) | CAD $7.00 | -- | |
| 6 | AC05970 CAST IRON DRAFT CONTROL WITH NUTS & BOLT 1 / appliance (sold individually) | CAD $27.00 | -- | |
| 7 | 29000 4" x 8" x 1 1/4" REFRACTORY BRICK 21 / appliance (sold individually) | CAD $3.50 | -- | |
| 8 | 29005 6" x 8 1/4" x 1 1/4" REFRACTORY BRICK HD 1 / appliance (sold individually) | CAD $5.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
