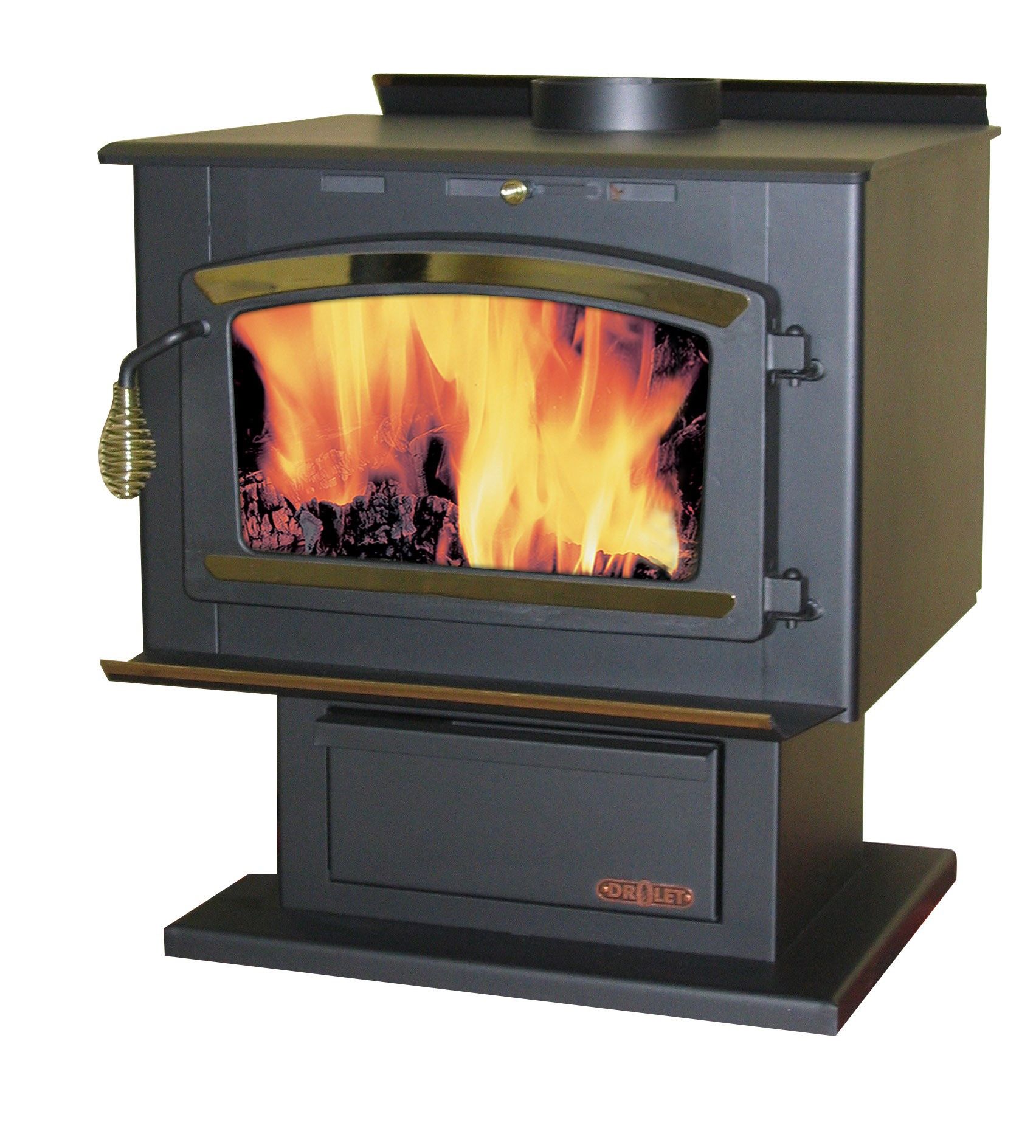

CLASSIC - N.E.
DB05345Serial Numbers: 100 to 14301

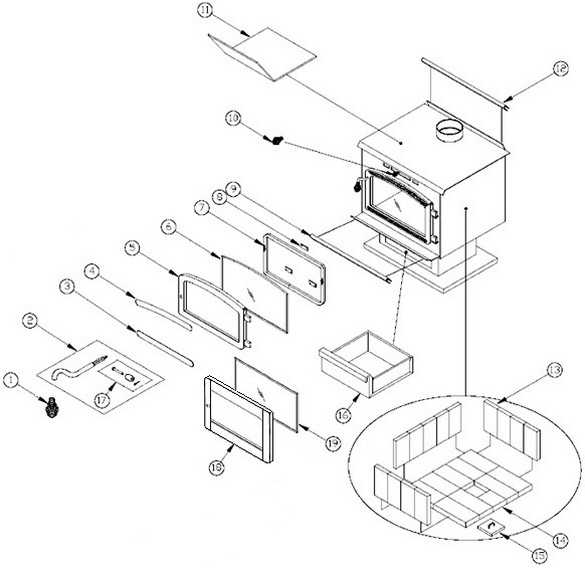

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | AC07860 1/2" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 2 | AC09155 HANDLE & LATCH KIT 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 3 | 99998 DISCONTINUED 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 4 | 99998 DISCONTINUED 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 5 | 99998 DISCONTINUED 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 6 | SE03734-09 7 13/16" x 16 1/16" x 8 3/4" ARCHED REPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | CAD $180.00 | -- | |
| 7 | AC06000 SILICONE & 1/2" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 8 | PL08535-06 GLASS RETAINER KIT 3 / appliance (sold individually) | CAD $15.00 | -- | |
| 9 | PL08311 CLASSIC ASHTRAY DECORATIVE MOULDING 1 / appliance (sold individually) | CAD $41.00 | -- | |
| 10 | AC07861 1/4" BRASS COIL HANDLE 1 / appliance (sold individually) | CAD $7.00 | -- | |
| 11 | PL08509 CLASSIC STEEL BAFFLE 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 12 | PL08312 CLASSIC HEAT STOPPER MOULDING 1 / appliance (sold individually) | CAD $41.00 | -- | |
| 13 | 29000 4" x 8" x 1 1/4" REFRACTORY BRICK 27 / appliance (sold individually) | CAD $3.50 | -- | |
| 14 | PL36048 4" x 4" x 1 1/4" REFRACTORY BRICK 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 15 | SE08308 CLASSIQUE CAP FOR ASH PAN DRAWER 1 / appliance (sold individually) | CAD $39.00 | -- | |
| 16 | 99998 DISCONTINUED 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 17 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 18 | 99999 BUILD TO ORDER 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 19 | SE03534-2 11 1/8″ x 17 7/8″ GLASS WITH GASKET FOR CLASSIC STEEL DOOR 1 / appliance (sold individually) | CAD $220.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
