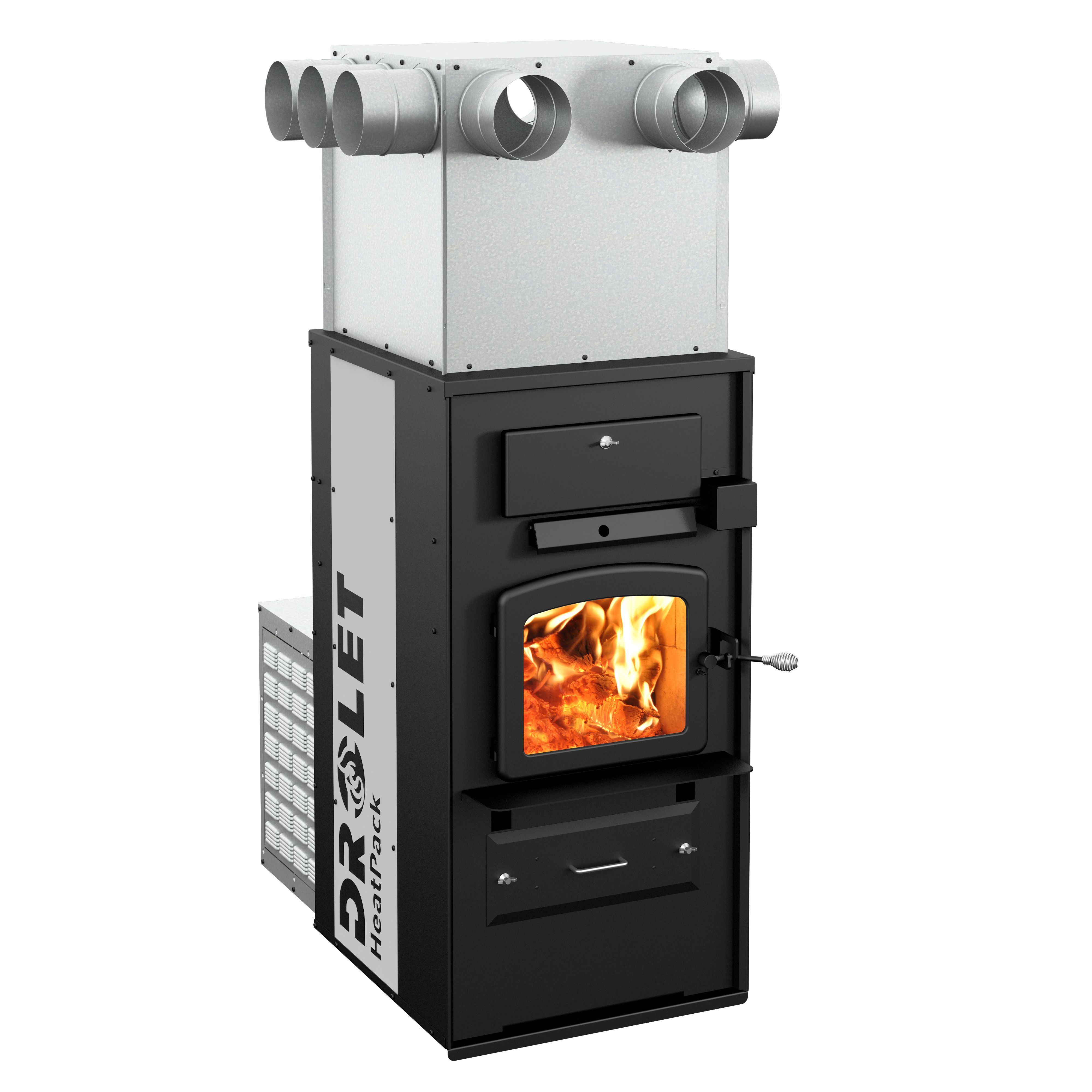

HEATPACK
DF00500Serial Numbers: 100 to 334
The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | PL51777 LEFT SIDE CABINET 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 2 | PL56780 ASH LIP 1 / appliance (sold individually) | CAD $49.00 | -- | |
| 3 | 30060 THREAD-CUTTING SCREW 1/4-20 x 1/2" F HEX STEEL SLOT WASHER C102 ZINC 3 / appliance (sold individually) | CAD $1.00 | -- | |
| 4 | SE51780 BOTTOM OF CABINET 1 / appliance (sold individually) | CAD $120.00 | -- | |
| 5 | PL51776 RIGHT SIDE CABINET 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 6 | 30154 BLACK ZINC SCREW #10 x 5/8" QUADREX #2 TYPE A 2 / appliance (sold individually) | CAD $12.00 | -- | |
| 7 | PL51778 TOP OF CABINET 1 / appliance (sold individually) | CAD $90.00 | -- | |
| 8 | SE44096 100 OHM RTD PROBE 38" WIRE WITH CONNECTOR 1 / appliance (sold individually) | CAD $110.00 | -- | |
| 9 | PL51810 RTD SUPPORT 1 / appliance (sold individually) | CAD $24.00 | -- | |
| 10 | SE51813 PLENUM ASSEMBLY 1 / appliance (sold individually) | CAD $270.00 | -- | |
| 11 | PL51779 REAR OF CABINET 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 12 | SE48211 HEAT EXCHANGER ACCESS DOOR 1 / appliance (sold individually) | CAD $90.00 | -- | |
| 13 | AC06900 1/2" x 9' BLACK ROUND GASKET WITH ADHESIVE KIT 1 / appliance (sold individually) | CAD $17.00 | -- | |
| 14 | 30210 WASHER 29/32" OD x 3/8" ID ZINC 1 / appliance (sold individually) | CAD $12.00 | -- | |
| 15 | 30416 WING NUT 3/8"-16 3 / appliance (sold individually) | CAD $2.00 | -- | |
| 16 | 30168 HINGE PIN 5/16"O x 1 1/4"L 2 / appliance (sold individually) | CAD $13.00 | -- | |
| 17 | 30055 HINGE PIN RETAINING RING 5/16"ID x 0.512"OD 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 18 | PL51789 AIR CONTROL LINKAGE COVER 1 / appliance (sold individually) | CAD $41.00 | -- | |
| 19 | SE51801 AIR CONTROL PLATE 1 / appliance (sold individually) | CAD $36.00 | -- | |
| 20 | 30026 THREAD CUTTING SCREW 10-24 F 5/8" HEX WASHER HEAD 2 / appliance (sold individually) | CAD $1.00 | -- | |
| 21 | 30867 CLEVIS YOKES 1 / appliance (sold individually) | CAD $29.00 | -- | |
| 22 | 30882 PRIMARY AIR CONTROL ROD 1 / appliance (sold individually) | CAD $24.00 | -- | |
| 23 | SE51000-01 HONEYWELL 24V DAMPER MOTOR WITH TERMINALS 1 / appliance (sold individually) | CAD $220.00 | -- | |
| 24 | 30146 PUSH NUT 1/8"O INT. x 3/8 1 / appliance (sold individually) | CAD $21.00 | -- | |
| 25 | SE56822 ROD RETAINER 1 / appliance (sold individually) | CAD $41.00 | -- | |
| 26 | 30117 BLACK SET SCREW #10-32 x 3/16" 1 / appliance (sold individually) | CAD $1.00 | -- | |
| 27 | 30100 BLACK HEX NUT 1/4 - 20 1 / appliance (sold individually) | CAD $1.00 | -- | |
| 28 | 30128 SOCKET SET SCREW 1/4"-20 x 1 1/4" 1 / appliance (sold individually) | CAD $2.00 | -- | |
| 29 | 30429 3/8" NICKEL COIL HANDLE 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 30 | SE24258 CAST IRON DOOR WITH HANDLE 1 / appliance (sold individually) | CAD $190.00 | -- | |
| 31 | AC09151 REPLACEMENT HANDLE KIT 1 / appliance (sold individually) | CAD $45.00 | -- | |
| 32 | SE51352 10 7/8" x 13 1/8" REPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | CAD $140.00 | -- | |
| 33 | AC06810 1/8" x 3/8" x 6' SELF-ADHESIVE BLACK GASKET 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 34 | PL51349 GLASS RETAINER FRAME 2 / appliance (sold individually) | CAD $15.00 | -- | |
| 35 | PL51350 BOTTOM AIR DEFLECTOR 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 36 | PL51351 GLASS RETAINER FRAME BRACKET 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 37 | 30124 SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC 6 / appliance (sold individually) | CAD $1.00 | -- | |
| 38 | AC06725 GLUE & 3/4" x 7' WHITE DOOR GASKET KIT 1 / appliance (sold individually) | CAD $19.00 | -- | |
| 39 | 28061 CHROME ASH DRAWER HANDLE 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 40 | SE51783 ASH DRAWER 1 / appliance (sold individually) | CAD $110.00 | -- | |
| 41 | 24096 ROUND CAST IRON ASH PLUG 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 42 | 21441 SIDE PANEL INSULATION 2 / appliance (sold individually) | CAD $15.00 | -- | |
| 44 | 29000 4" x 8" x 1 1/4" REFRACTORY BRICK 6 / appliance (sold individually) | CAD $3.50 | -- | |
| 45 | 29015 4" x 9" x 1 1/4" REFRACTORY BRICK 7 / appliance (sold individually) | CAD $10.00 | -- | |
| 46 | PL36060 3 1/2" x 9" x 1 1/4" REFRACTORY BRICK 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 47 | PL36038 4 1/2" x 8 3/4" x 1 1/4" REFRACTORY BRICK 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 48 | 29010 4 1/2" x 9" x 1 1/4" REFRACTORY BRICK 4 / appliance (sold individually) | CAD $3.50 | -- | |
| 49 | PL36084 4" x 4 1/2" x 1 1/4" REFRACTORY BRICK (AC-SB4.5) 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 50 | PL36256 1 1/16" x 6 3/4" x 1 1/4" REFRACTORY BRICK 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 51 | PL36021 2 1/8" x 9" x 1 1/4" REFRACTORY BRICK 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 52 | 21442 REAR PANEL INSULATION 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 53 | PL51762 MIDDLE REAR SECONDARY AIR TUBE 3 / appliance (sold individually) | CAD $55.00 | -- | |
| 54 | PL51763 FRONT SECONDARY AIR TUBE 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 55 | 21443 C-CAST BAFFLE 13 3/8" x 16 1/16" 1 / appliance (sold individually) | CAD $95.00 | -- | |
| 56 | 30494 PANDUIT POLYETHYLENE EXTRUSION 0 / appliance (sold individually) | CAD $19.00 | -- | |
| 57 | 44091 ROCKER SWITCH 2 POSITION MSR-8 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 58 | 60036 THERMOSTAT TERMINAL 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 59 | 60300 BLACK ELECTRICAL WIRE TEW 105°C 18 AWG 14" 1 / appliance (sold individually) | CAD $19.00 | -- | |
| 60 | 60008 BLACK NYLON BUSHING 1 / appliance (sold individually) | CAD $13.00 | -- | |
| 61 | 60013 POWER CORD 96" x 18-3 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 62 | 60208 TRANSFORMER 120 V/24 V 20 VA 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 63 | 60369 24 AWG CSA TEW 105°C 600V WIRE 16" 1 / appliance (sold individually) | CAD $16.00 | -- | |
| 64 | PL51834 ELECTRONIC BOARD 1 / appliance (sold individually) | CAD $250.00 | -- | |
| 65 | 30408 ELECTRONIC BOARD CLIP 8 / appliance (sold individually) | CAD $5.00 | -- | |
| 66 | PL66035 BLOWER BOX BASE 1 / appliance (sold individually) | CAD $70.00 | -- | |
| 67 | 30536 LEVELING BOLT 1/4 - 20 x 1" 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 68 | SE51823 BLOWER ASSEMBLY WITH 1/4 HP MOTOR, DD 4 SPEED 1075/4RPM 1 / appliance (sold individually) | CAD $410.00 | -- | |
| 69 | 30335 BLOWER ANTIVIBRATION CUSHION 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 70 | PL66037 BLOWER HOUSING BACKET 2 / appliance (sold individually) | CAD $15.00 | -- | |
| 71 | 30109 BOLT HEX 1/4 - 20 x 1" 4 / appliance (sold individually) | CAD $13.00 | -- | |
| 72 | 51009 1/4 HP DD-4 SPEED MOTOR 1075/4RPM 1 / appliance (sold individually) | CAD $250.00 | -- | |
| 73 | 51010 BLOWER HOSING G-90 (DTC916) 1 / appliance (sold individually) | CAD $220.00 | -- | |
| 74 | 30094 HEX SCREW WASHER HEAD 1/4-20 x 3/4" F ZINC TYPE 3 / appliance (sold individually) | CAD $2.00 | -- | |
| 75 | PL51833 BLOWER BOX TOP 1 / appliance (sold individually) | CAD $39.00 | -- | |
| 76 | PL51812 BLOWER BOX CONTOUR 1 / appliance (sold individually) | CAD $95.00 | -- | |
| 77 | AC01392 COLD AIR RETURN HOUSING WITH FILTER 1 / appliance (sold individually) | CAD $120.00 | -- | |
| 78 | AC01390 CARDBOARD FRAME AIR FILTER WITH SUPPORT (20" x 15" x 1") 1 / appliance (sold individually) | CAD $80.00 | -- | |
| 79 | 21044 CARDBOARD FRAME AIR FILTER 20" x 15" x 1" 2 / appliance (sold individually) | CAD $20.00 | -- | |
| 79 | 21439 WASHABLE ALUMINIUM AIR FILTER 20" x 15" x 1" 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 80 | 99998 DISCONTINUED 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 81 | AC05959 METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL 1 / appliance (sold individually) | CAD $19.00 | -- | |
| 82 | PL48170 HEAT EXCHANGER SCRAPER 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 83 | PL48173 POKER 1 / appliance (sold individually) | CAD $40.00 | -- | |
| 84 | 44171 MOISTURE READER 1 / appliance (sold individually) | CAD $65.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
