ULTRA-FLAME (4 LOGS)
DG05400--

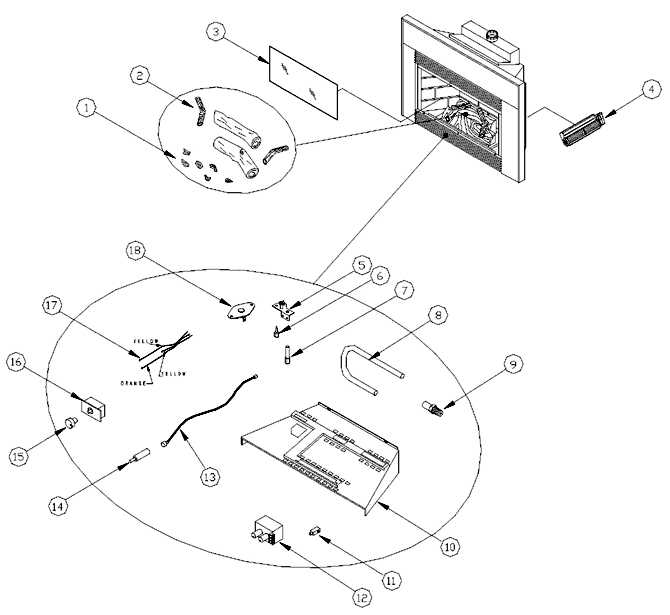

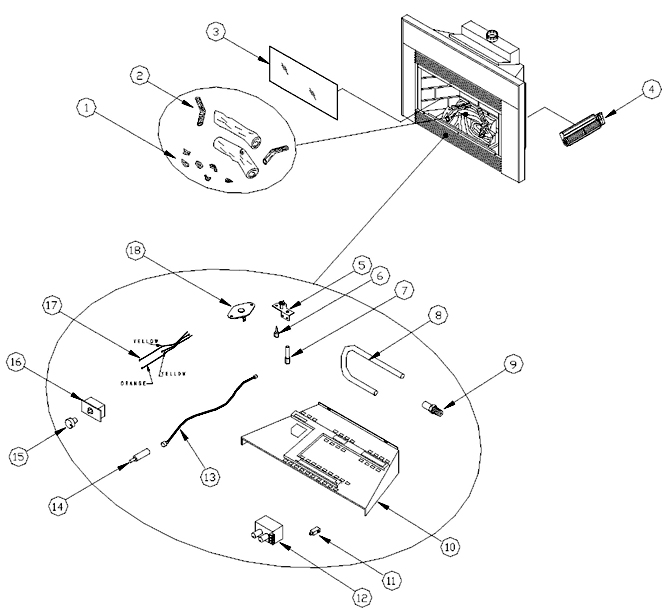

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | 99998 DISCONTINUED 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 2 | 99998 DISCONTINUED 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 3 | SE07916 ULTRA-FLAME INSERT REMPLACEMENT GLASS 1 / appliance (sold individually) | CAD $290.00 | -- | |
| 4 | 44070 CROSSFLOW BLOWER 130 CFM 115V-60Hz-56W 1 / appliance (sold individually) | CAD $190.00 | -- | |
| 6 | SE49122 S.I.T. 0.290.118 THERMOCOUPLE WITH COMPRESSION SLEEVE 600MM (SHORT) 1 / appliance (sold individually) | CAD $35.00 | -- | |
| 8 | 99998 DISCONTINUED 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 9 | 9071-0 # 36 NATURAL INTAKE BURNER (ORIFICE) 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 10 | 99998 DISCONTINUED 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 11 | 49115 INTERRUPTOR BLOCK FOR THERMOCOUPLE 1 / appliance (sold individually) | CAD $31.00 | -- | |
| 12 | 99998 DISCONTINUED 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 13 | 9312-03 20" PIEZO WIRE HG38 1 / appliance (sold individually) | CAD $41.00 | -- | |
| 14 | 49128 S.I.T. 0073-953 PIEZO BUTTON 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 15 | 44085 RHEOSTAT KNOB 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 16 | 44080 RHEOSTAT WITHOUT NUT (AC-11) 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 17 | 99998 DISCONTINUED 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 18 | 44028 CERAMIC THERMODISC F110-20F 1 / appliance (sold individually) | CAD $25.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
