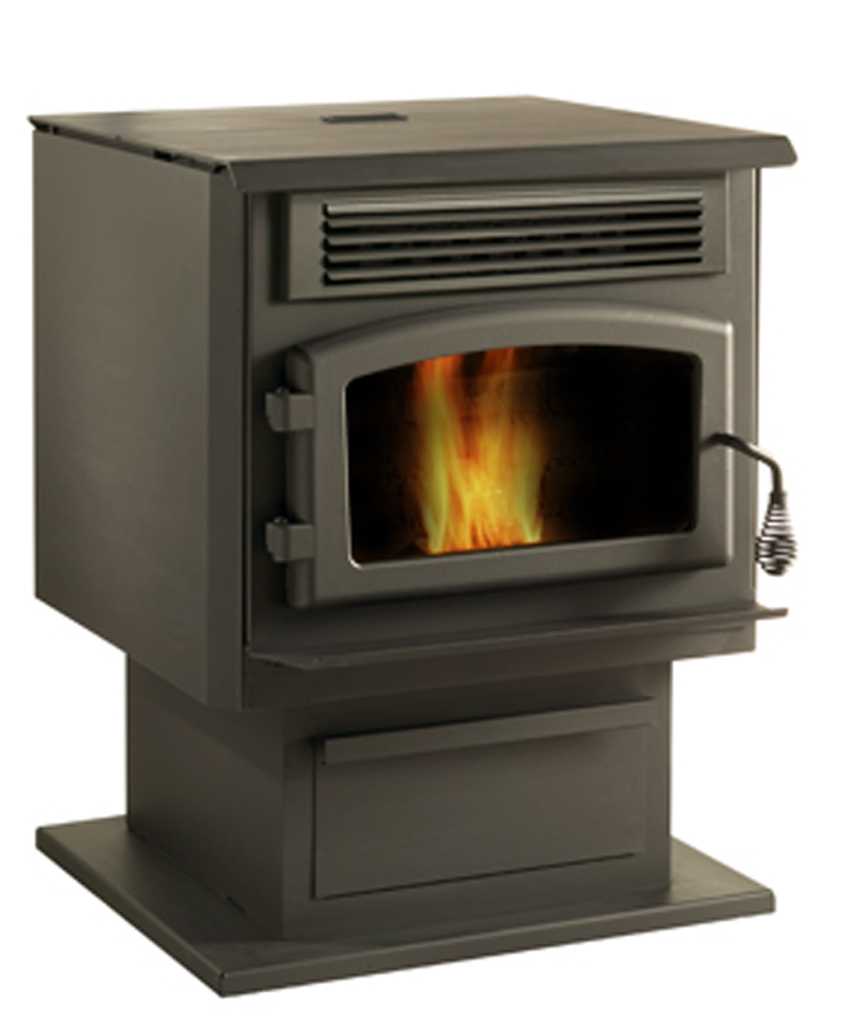

ECO-45
DP00045-3Serial Numbers: 2252 to 3351

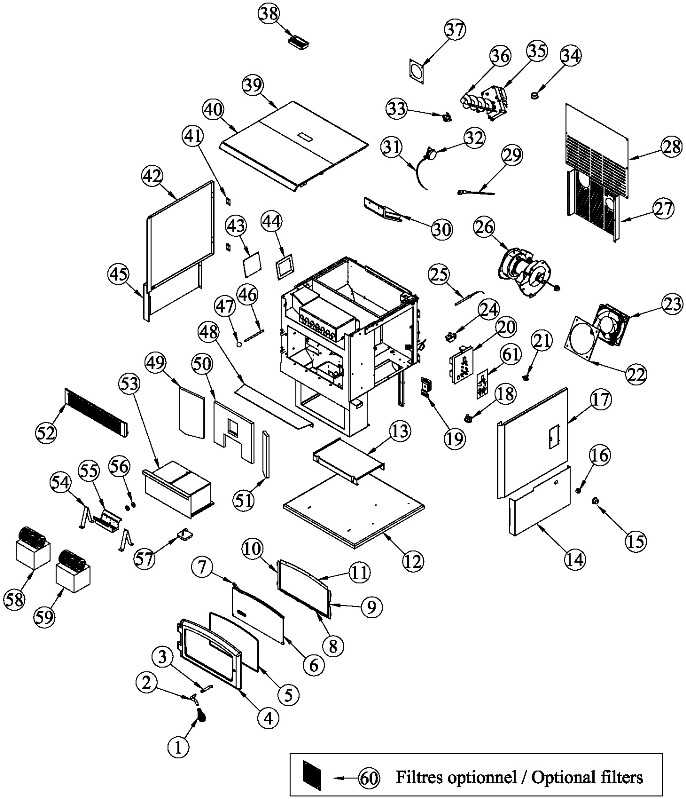

The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | AC07868 1/2" BLACK COIL HANDLE 1 / appliance (sold individually) | CAD $7.00 | -- | |
| 2 | PL52683 REMOVABLE HANDLE 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 3 | AC09176 DOOR HANDLE & LATCH KIT 1 / appliance (sold individually) | CAD $45.00 | -- | |
| 4 | SE24085-02 DOOR ASSEMBLY WITH GASKET, HANDLE AND LATCH 1 / appliance (sold individually) | CAD $230.00 | -- | |
| 5 | AC06100 SILICONE AND 1/4" x 1/2" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 6 | SE52708 7 51/64" x 16 3/4" x 8 23/32" ARCHED REPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | CAD $140.00 | -- | |
| 7 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | CAD $11.00 | -- | |
| 8 | PL52718 AIR DEFLECTOR TRIM 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 9 | PL52719 HANDLE SIDE GLASS RETAINER 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 10 | PL52717 HINGE SIDE GLASS RETAINER 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 11 | PL08537-04 TOP GLASS RETAINER 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 12 | PL52627 BASE 1 / appliance (sold individually) | CAD $65.00 | -- | |
| 13 | PL52618 ASH DRAWER GUIDE 1 / appliance (sold individually) | CAD $29.00 | -- | |
| 14 | PL52642 BOTTOM RIGHT DECORATIVE PANEL 1 / appliance (sold individually) | CAD $39.00 | -- | |
| 15 | 60015 CONTROL KNOB 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 16 | 30412 BLACK UNIVERSAL SNAP-IN BUSHING 1 / appliance (sold individually) | CAD $1.00 | -- | |
| 17 | PL52607 UPPER RIGHT DECORATIVE PANEL 1 / appliance (sold individually) | -- | -- | |
| 18 | 44058 THERMODISC 36T12 F160 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 19 | 30454 DOUBLE MAGNET 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 20 | SE52680 45 SERIES PC BOARD ASSEMBLY 1 / appliance (sold individually) | CAD $420.00 | -- | |
| 21 | 44041 THERMODISC L250F MANUAL RESET 36T16 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 22 | 21177 CONVECTION BLOWER GASKET 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 23 | 44100 TUBEAXIAL BLOWER 115V-60Hz-18W 2 / appliance (sold individually) | CAD $150.00 | -- | |
| 24 | 44098 HOPPER LID SAFETY SWITCH 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 25 | 44030 PELLET STOVE IGNITER (THREADED) 1 / appliance (sold individually) | CAD $120.00 | -- | |
| 26 | SE44039 COMBEX BLOWER 120 VOLTS 45 SERIE 1 / appliance (sold individually) | CAD $320.00 | -- | |
| 27 | SE52656 BOTTOM BACK PLATE 1 / appliance (sold individually) | CAD $80.00 | -- | |
| 28 | PL52527 UPPER BACK PLATE 1 / appliance (sold individually) | CAD $44.00 | -- | |
| 29 | SE44095 THERMISTOR ASSEMBLY 1 / appliance (sold individually) | CAD $45.00 | -- | |
| 30 | SE52597 HOPPER HEAT SHEILD 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 31 | 49004 PRESSURE SWITCH HOSE 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 32 | 44029 PRESSURE SWITCH 1 / appliance (sold individually) | CAD $50.00 | -- | |
| 33 | 44059 THERMODISC 36T11 L250-25 AUTOMATIC 2 / appliance (sold individually) | CAD $25.00 | -- | |
| 34 | 30528 BRASS BUSHING FOR PELLET STOVE AUGER 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 35 | 44038 AUGER GEAR MOTOR 1 RPM 1 / appliance (sold individually) | CAD $220.00 | -- | |
| 36 | 24017 CAST IRON AUGER 1 / appliance (sold individually) | CAD $130.00 | -- | |
| 37 | 21110 AUGER PLATE GASKET 1 / appliance (sold individually) | CAD $5.00 | -- | |
| 38 | 30527 HOPPER LID PLASTIC HANDLE 1 / appliance (sold individually) | CAD $35.00 | -- | |
| 39 | SE56020 HOPPER LID ASSEMBLY 1 / appliance (sold individually) | CAD $95.00 | -- | |
| 40 | SE52606 FRONT TOP ASSEMBLY 1 / appliance (sold individually) | CAD $100.00 | -- | |
| 41 | 30013 2" x 1 1/2" HINGE 6 / appliance (sold individually) | CAD $5.00 | -- | |
| 42 | 99998 DISCONTINUED 1 / appliance (sold individually) | -- | -- | |
| 43 | PL52564 EXHAUST ACCESS PANEL FOR MAINTENANCE 1 / appliance (sold individually) | CAD $35.00 | -- | |
| 44 | AC09189 45 SERIES MAINTENANCE GASKET KIT 2 / appliance (sold individually) | CAD $20.00 | -- | |
| 45 | PL52611 LEFT BOTTOM DECORATIVE PANEL 1 / appliance (sold individually) | CAD $39.00 | -- | |
| 46 | 30546 THREADED HEAT EXCHANGER ROD 45 SERIE 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 47 | 30562 3/4" x 1/4"-20 ROUND HANDLE FOR EXCHANGER ROD 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 48 | PL16049 ASH LIP 1 / appliance (sold individually) | CAD $34.00 | -- | |
| 49 | 21117 LEFT HAND SIDE DECORATIVE BRICK 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 50 | 21119 MIDDLE DECORATIVE BRICK 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 51 | 21118 RIGHT HAND SIDE DECORATIVE BRICK PANEL FOR PELLET 1 / appliance (sold individually) | CAD $60.00 | -- | |
| 52 | SE56030 UPPER LOUVRE ASSEMBLY 1 / appliance (sold individually) | CAD $100.00 | -- | |
| 53 | SE52615 ASH DRAWER 1 / appliance (sold individually) | CAD $80.00 | -- | |
| 54 | PL52691 LOG SUPPORT BRACKET 45 SERIE 2 / appliance (sold individually) | CAD $20.00 | -- | |
| 55 | SE52545 PELLET BURN POT ASSEMBLY 45 SERIE 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 56 | AC09189 45 SERIES MAINTENANCE GASKET KIT 2 / appliance (sold individually) | CAD $20.00 | -- | |
| 57 | SE16059 ASH PLUG 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 58 | AC01278 DECORATIVE LOG SET 45-SERIES 1 / appliance (sold individually) | CAD $200.00 | -- |
