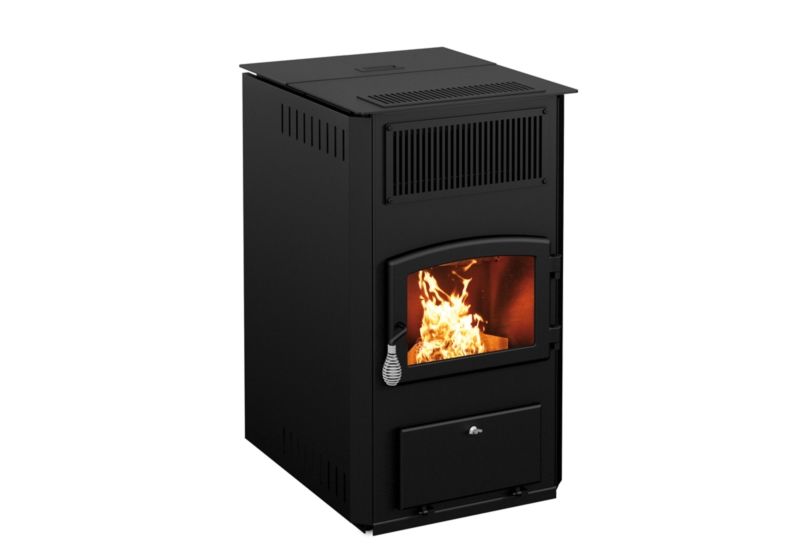

ECO-65
DP00055Serial Numbers: 1125 to 2979The reference plan contains the numbers used in the table below to identify parts.
| # | Part (sold individually) | Price | Availability | |
|---|---|---|---|---|
| 1 | AC07867 1/2" CHROME COIL HANDLE 1 / appliance (sold individually) | CAD $8.00 | -- | |
| 2 | SE24219 CAST IRON DOOR WITH GASKET, HANDLE AND LATCH 1 / appliance (sold individually) | CAD $230.00 | -- | |
| 3 | AC06900 1/2" x 9' BLACK ROUND GASKET WITH ADHESIVE KIT 2 / appliance (sold individually) | CAD $17.00 | -- | |
| 4 | AC09155 HANDLE & LATCH KIT 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 5 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 6 | 30101 SPRING TENSION PIN 5/32"Ø x 1 1/2"L 1 / appliance (sold individually) | CAD $2.00 | -- | |
| 7 | AC06810 1/8" x 3/8" x 6' SELF-ADHESIVE BLACK GASKET 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 8 | PL62417 ARCHED REPLACEMENT GLASS 1 / appliance (sold individually) | CAD $130.00 | -- | |
| 9 | PL62415 LOWER GLASS RETAINER 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 10 | PL62416 UPPER GLASS RETAINER 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 11 | 30124 SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC 12 / appliance (sold individually) | CAD $1.00 | -- | |
| 12 | PL62412 BAFFLE 1 / appliance (sold individually) | CAD $30.00 | -- | |
| 13 | SE62254 COMBUSTION POT ASSEMBLY 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 14 | SE62302 BURN POT SUPPORT ASSEMBLY 1 / appliance (sold individually) | CAD $110.00 | -- | |
| 15 | AC06100 SILICONE & 1/4" x 1/2" x 8' BLACK DOOR GASKET KIT 1 / appliance (sold individually) | CAD $15.00 | -- | |
| 16 | 30686 FIRE POT LATCH 1 / appliance (sold individually) | CAD $45.00 | -- | |
| 17 | 30205 ZINC WASHER ID 13/32" x OD 13/16" 1 / appliance (sold individually) | CAD $1.00 | -- | |
| 18 | 30416 WING NUT 3/8"-16 1 / appliance (sold individually) | CAD $2.00 | -- | |
| 19 | SE62325 ASH DRAWER ACCESS DOOR 1 / appliance (sold individually) | CAD $100.00 | -- | |
| 20 | 30341 HINGE PIN 5/16" x 1 1/2" 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 21 | SE62290 ASH DRAWER 1 / appliance (sold individually) | CAD $65.00 | -- | |
| 22 | 30363 HINGE PIN 5/16" x 2" 2 / appliance (sold individually) | CAD $10.00 | -- | |
| 23 | PL44145 SLIM IGNITER 400W - 120V x 7" 1 / appliance (sold individually) | CAD $350.00 | -- | |
| 24 | 30710 SPRING CLIP 24 / appliance (sold individually) | CAD $16.00 | -- | |
| 25 | 30050 LEVELING BOLT 3/8-16 x 1 1/2" 4 / appliance (sold individually) | CAD $8.00 | -- | |
| 26 | 99998 DISCONTINUED 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 27 | 44059 THERMODISC 36T11 L250-25 AUTOMATIC 1 / appliance (sold individually) | CAD $25.00 | -- | |
| 28 | 21193 AUGER SUPPORT INSULATION 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 29 | 49400 3" TO 4" STAINLESS STEEL COLLAR 2 / appliance (sold individually) | CAD $21.00 | -- | |
| 30 | 44058 THERMODISC 36T12 F160 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 31 | SE67195 IGNITER RETROFIT FIRST GENERATION 65 SERIE 1 / appliance (sold individually) | CAD $150.00 | -- | |
| 32 | SE62340 RIGHT HAND SIDE DECORATIVE PANEL ASSEMBLY 1 / appliance (sold individually) | CAD $300.00 | -- | |
| 33 | SE62330 HOUSING FOR ELECTRONIC CONTROL BOARD MEMBRANE 1 / appliance (sold individually) | CAD $220.00 | -- | |
| 34 | SE44139 MEMBRANE SWITCH ON COVER 1 / appliance (sold individually) | CAD $35.00 | -- | |
| 35 | 30335 BLOWER ANTIVIBRATION CUSHION 4 / appliance (sold individually) | CAD $5.00 | -- | |
| 36 | 30206 ZINC WASHER 5/16"IØ x 3/4"OØ 4 / appliance (sold individually) | CAD $1.00 | -- | |
| 37 | 30024 1/4-20 x 1" MECHANICAL SCREW PAN QUADREX ZINC 4 / appliance (sold individually) | CAD $1.00 | -- | |
| 38 | SE44108 BLOWER WITH CAPACITOR (500 PCM, 115v, 60Hz, 1100 TPM) 1 / appliance (sold individually) | CAD $420.00 | -- | |
| 39 | PL62308 BLOWER WOOL RETAINER 1 / appliance (sold individually) | CAD $21.00 | -- | |
| 40 | 21350 WOOL SEAL FOR BLOWER 1 / appliance (sold individually) | CAD $7.00 | -- | |
| 41 | 44029 PRESSURE SWITCH 1 / appliance (sold individually) | CAD $50.00 | -- | |
| 42 | 49606 3/8" x 42" SILICONE HOSE 2 / appliance (sold individually) | CAD $25.00 | -- | |
| 43 | SE60047 AIR PUMP ASSEMBLY (500 PCM, 115v, 60Hz, 1100 TPM) 1 / appliance (sold individually) | CAD $240.00 | -- | |
| 44 | SE62306 AIR INTAKE BOX ASSEMBLY 1 / appliance (sold individually) | CAD $160.00 | -- | |
| 45 | 44104 COMBUSTION BLOWER 120V-60Hz 1 / appliance (sold individually) | CAD $200.00 | -- | |
| 46 | 60036 THERMOSTAT TERMINAL 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 47 | 60327 JUNCTION WIRE MAIN CONTROL BOARD TO LCD 1 / appliance (sold individually) | CAD $40.00 | -- | |
| 48 | PL62350 REAR VENTILATION LOUVER 1 / appliance (sold individually) | CAD $39.00 | -- | |
| 49 | PL62349 UPPER REAR PANEL 1 / appliance (sold individually) | CAD $34.00 | -- | |
| 50 | 60013 POWER CORD 96" x 18-3 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 51 | 24031 AUGER 1 / appliance (sold individually) | CAD $95.00 | -- | |
| 52 | SE24233 GEAR MOTOR SUPPORT WITH INSULATION 1 / appliance (sold individually) | CAD $120.00 | -- | |
| 53 | 21193 AUGER SUPPORT INSULATION 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 54 | 44126 GEAR MOTOR FOR PELLET STOVE 2.4 RPM 1 / appliance (sold individually) | CAD $220.00 | -- | |
| 55 | 44106 GEAR MOTOR FOR PELLET STOVE 1.5 RPM 1 / appliance (sold individually) | CAD $220.00 | -- | |
| 56 | 21193 AUGER SUPPORT INSULATION 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 57 | 21195 PRIMARY CHUTE GASKET 1 / appliance (sold individually) | CAD $7.00 | -- | |
| 58 | 44098 HOPPER LID SAFETY SWITCH 1 / appliance (sold individually) | CAD $20.00 | -- | |
| 59 | SE44095 THERMISTOR ASSEMBLY 1 / appliance (sold individually) | CAD $45.00 | -- | |
| 60 | SE62293 EXHAUST BLOWER ASSEMBLY 1 / appliance (sold individually) | CAD $240.00 | -- | |
| 61 | 21194 EXHAUST BLOWER GASKET 1 / appliance (sold individually) | CAD $10.00 | -- | |
| 62 | SE62344 HOPPER LID ASSEMBLY 1 / appliance (sold individually) | CAD $160.00 | -- | |
| 63 | 30013 2" x 1 1/2" HINGE 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 64 | 30527 HOPPER LID PLASTIC HANDLE 1 / appliance (sold individually) | CAD $35.00 | -- | |
| 65 | 30093 BOLT 1/4-20 x 3/4" HEX GRADE 5 19 / appliance (sold individually) | CAD $2.00 | -- | |
| 66 | 30216 1/4" LOCK WASHER 19 / appliance (sold individually) | CAD $1.00 | -- | |
| 67 | SE62345 FRONT TOP ASSEMBLY 1 / appliance (sold individually) | CAD $110.00 | -- | |
| 68 | SE62389 TOP DECORATIVE GRILL 1 / appliance (sold individually) | CAD $85.00 | -- | |
| 69 | PL62339 FRONT LOUVER 1 / appliance (sold individually) | CAD $75.00 | -- | |
| 70 | AC09190 65 SERIES MAINTENANCE GASKET KIT 1 / appliance (sold individually) | CAD $80.00 | -- | |
| 71 | SE62341 DECORATIVE LEFT SIDE ASSEMBLY 1 / appliance (sold individually) | CAD $130.00 | -- | |
| 72 | 99998 DISCONTINUED 1 / appliance (sold individually) | CAD $14.00 | -- | |
| 73 | AC01330 4" x 10" HOT AIR PLENUM KIT 1 / appliance (sold individually) | CAD $120.00 | -- | |
| 74 | 24030 AUGER 1 / appliance (sold individually) | CAD $70.00 | -- | |
| 75 | PL64357 MOTHER BOARD 6 OUPUT 1 / appliance (sold individually) | CAD $220.00 | -- | |
| 76 | 44013 FUSE 7.5A / 250V / 1/4"Ø x 1 1/4"L 1 / appliance (sold individually) | CAD $16.00 | -- | |
| 77 | 44015 FUSE 5A / 250V / 1/4"Ø x 1 1/4"L 2 / appliance (sold individually) | CAD $5.00 | -- | |
| 78 | 44016 FUSE 3A / 250V / 1/4"Ø x 1 1/4"L 4 / appliance (sold individually) | CAD $5.00 | -- | |
| 79 | PL62342 SCRAPER 1 / appliance (sold individually) | CAD $55.00 | -- | |
| 80 | AC05963 METALLIC BLACK STOVE PAINT - 85 g (3oz) AEROSOL 1 / appliance (sold individually) | CAD $12.00 | -- | |
| 81 | 44132 PELLET IGNITER 120 V WITH ALLEN SET SCREW 1 / appliance (sold individually) | CAD $120.00 | -- |
The number appears on the reference plan provided above the table.
Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
