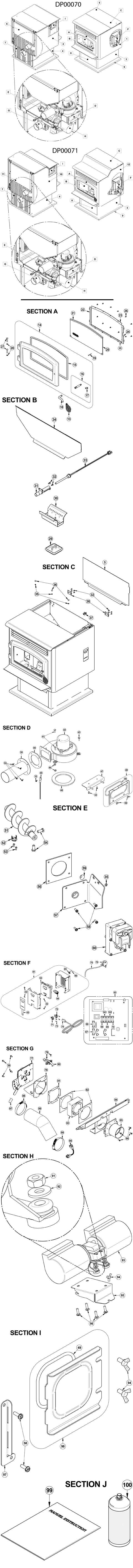

The reference plan contains the numbers used in the table below to identify parts.
# | Part (sold individually) | Price | Availability | |
---|---|---|---|---|
0 | 30546 THREADED HEAT EXCHANGER ROD 45 SERIE 1 / appliance (sold individually) | CAD $20.00 | -- | |
1 | PL69808 RIGHT SIDE DECORATIVE PANEL 1 / appliance (sold individually) | CAD $110.00 | -- | |
2 | PL69809 LEFT SIDE DECORATIVE PANEL 1 / appliance (sold individually) | CAD $100.00 | -- | |
3 | PL69806 LOWER RIGHT SIDE DECORATIVE PANEL 1 / appliance (sold individually) | CAD $39.00 | -- | |
4 | PL69807 LOWER LEFT SIDE DECORATIVE PANEL 1 / appliance (sold individually) | CAD $39.00 | -- | |
5 | PL69801 HOPPER LID 1 / appliance (sold individually) | CAD $44.00 | -- | |
6 | PL69794 BACK PANEL 1 / appliance (sold individually) | CAD $60.00 | -- | |
7 | PL69795 LOWER BACK PANEL 1 / appliance (sold individually) | CAD $34.00 | -- | |
8 | SE69810 ASH DRAWER 1 / appliance (sold individually) | CAD $110.00 | -- | |
10 | PL69833 LEFT SIDE DECORATIVE PANEL 1 / appliance (sold individually) | CAD $130.00 | -- | |
11 | PL69854 BACK PANEL 1 / appliance (sold individually) | CAD $75.00 | -- | |
12 | PL69832 RIGHT SIDE DECORATIVE PANEL 1 / appliance (sold individually) | CAD $130.00 | -- | |
13 | AC07868 1/2" BLACK COIL HANDLE 1 / appliance (sold individually) | CAD $7.00 | -- | |
14 | SE24085 DOOR FRAME WITH HANDLE AND GASKET WITHOUT GLASS 1 / appliance (sold individually) | CAD $230.00 | -- | |
15 | AC06200 SILICONE AND 1/4" x 1/2" x 11' BLACK GASKET KIT 1 / appliance (sold individually) | CAD $19.00 | -- | |
16 | AC09176 DOOR HANDLE & LATCH KIT 1 / appliance (sold individually) | CAD $45.00 | -- | |
17 | AC09185 DOOR LATCH KIT 1 / appliance (sold individually) | CAD $30.00 | -- | |
18 | PL52683 REMOVABLE HANDLE 1 / appliance (sold individually) | CAD $20.00 | -- | |
19 | 30101 SPRING TENSION PIN 5/32"Ø x 1 1/2"L 1 / appliance (sold individually) | CAD $2.00 | -- | |
20 | SE52708 7 51/64" x 16 3/4" x 8 23/32" ARCHED REPLACEMENT GLASS WITH GASKET 1 / appliance (sold individually) | CAD $140.00 | -- | |
21 | AC06400 3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET 1 / appliance (sold individually) | CAD $11.00 | -- | |
22 | PL52717 HINGE SIDE GLASS RETAINER 1 / appliance (sold individually) | CAD $5.00 | -- | |
23 | PL08537-04 TOP GLASS RETAINER 1 / appliance (sold individually) | CAD $15.00 | -- | |
24 | PL52719 HANDLE SIDE GLASS RETAINER 1 / appliance (sold individually) | CAD $5.00 | -- | |
25 | PL52718 AIR DEFLECTOR TRIM 1 / appliance (sold individually) | CAD $5.00 | -- | |
26 | 30124 SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC 12 / appliance (sold individually) | CAD $1.00 | -- | |
27 | 30170 HINGE PIN 5/16"Ø x 1 1/2"L 2 / appliance (sold individually) | CAD $2.00 | -- | |
28 | 30055 HINGE PIN RETAINING RING 5/16"ID x 0.512"OD 2 / appliance (sold individually) | CAD $5.00 | -- | |
29 | SE16059 ASH PLUG 1 / appliance (sold individually) | CAD $25.00 | -- | |
30 | SE69759 BURN POT 1 / appliance (sold individually) | CAD $40.00 | -- | |
31 | 44192 IGNITOR TUBE 1 / appliance (sold individually) | CAD $55.00 | -- | |
32 | 30029 THREAD CUTTING SCREW 10-24 TYPE "F" x 3/8" HEX WASHER 16 / appliance (sold individually) | CAD $1.00 | -- | |
33 | SE44132 IGNITER 1 / appliance (sold individually) | CAD $120.00 | -- | |
34 | PL69777 FIRE BAFFLE 1 / appliance (sold individually) | CAD $100.00 | -- | |
35 | 30405 NUT #6-32 HEX ZINC 3 / appliance (sold individually) | CAD $12.00 | -- | |
36 | 30370 RUBBER BUMPER WITH THREADS 6-32 3 / appliance (sold individually) | CAD $16.00 | -- | |
37 | 44098 HOPPER LID SAFETY SWITCH 1 / appliance (sold individually) | CAD $20.00 | -- | |
38 | 30013 2" x 1 1/2" HINGE 2 / appliance (sold individually) | CAD $5.00 | -- | |
39 | SE69785 EXHAUST PIPE ASSEMBLY 1 / appliance (sold individually) | CAD $39.00 | -- | |
40 | 21392 EXHAUST ADAPTER GASKET 1 / appliance (sold individually) | CAD $8.00 | -- | |
41 | 30093 BOLT 1/4-20 x 3/4" HEX GRADE 5 2 / appliance (sold individually) | CAD $2.00 | -- | |
42 | SE44193 EXHAUST BLOWER WITH GASKETS 1 / appliance (sold individually) | CAD $220.00 | -- | |
43 | 30094 HEX SCREW WASHER HEAD 1/4-20 x 3/4" F ZINC TYPE 1 / appliance (sold individually) | CAD $2.00 | -- | |
44 | 30220 FLANGED LOCKNUT 1/4-20 2 / appliance (sold individually) | CAD $1.00 | -- | |
45 | SE44095 THERMISTOR ASSEMBLY 1 / appliance (sold individually) | CAD $45.00 | -- | |
46 | 21393 EXHAUST BLOWER GASKET 1 / appliance (sold individually) | CAD $10.00 | -- | |
47 | PL69764 SUPPORT EXHAUST TRAP 1 / appliance (sold individually) | CAD $24.00 | -- | |
48 | SE69803 EXHAUST CLEANING PANEL ASSEMBLY 1 / appliance (sold individually) | CAD $34.00 | -- | |
49 | AC06815 3/16" x 5' BLACK GASKET AND SILICONE KIT 1 / appliance (sold individually) | CAD $15.00 | -- | |
50 | 30484 WING NUT 1/4-20 2 / appliance (sold individually) | CAD $1.00 | -- | |
51 | 24017 CAST IRON AUGER 1 / appliance (sold individually) | CAD $130.00 | -- | |
52 | 44059 THERMODISC 36T11 L250-25 AUTOMATIC 1 / appliance (sold individually) | CAD $25.00 | -- | |
53 | 30138 METAL SCREW #6 - 3/8" QUADREX "A" TYPE BLACK 2 / appliance (sold individually) | CAD $12.00 | -- | |
54 | 30092 BOLT 5/16"-18 x 3/4" HEX GRADE 5 2 / appliance (sold individually) | CAD $2.00 | -- | |
55 | 30528 BRASS BUSHING FOR PELLET STOVE AUGER 1 / appliance (sold individually) | CAD $10.00 | -- | |
56 | 21110 AUGER PLATE GASKET 1 / appliance (sold individually) | CAD $5.00 | -- | |
57 | PL69773 AUGER BUSHING SUPPORT PLATE 1 / appliance (sold individually) | CAD $29.00 | -- | |
58 | 30026 THREAD CUTTING SCREW 10-24 F 5/8" HEX WASHER HEAD 10 / appliance (sold individually) | CAD $1.00 | -- |
