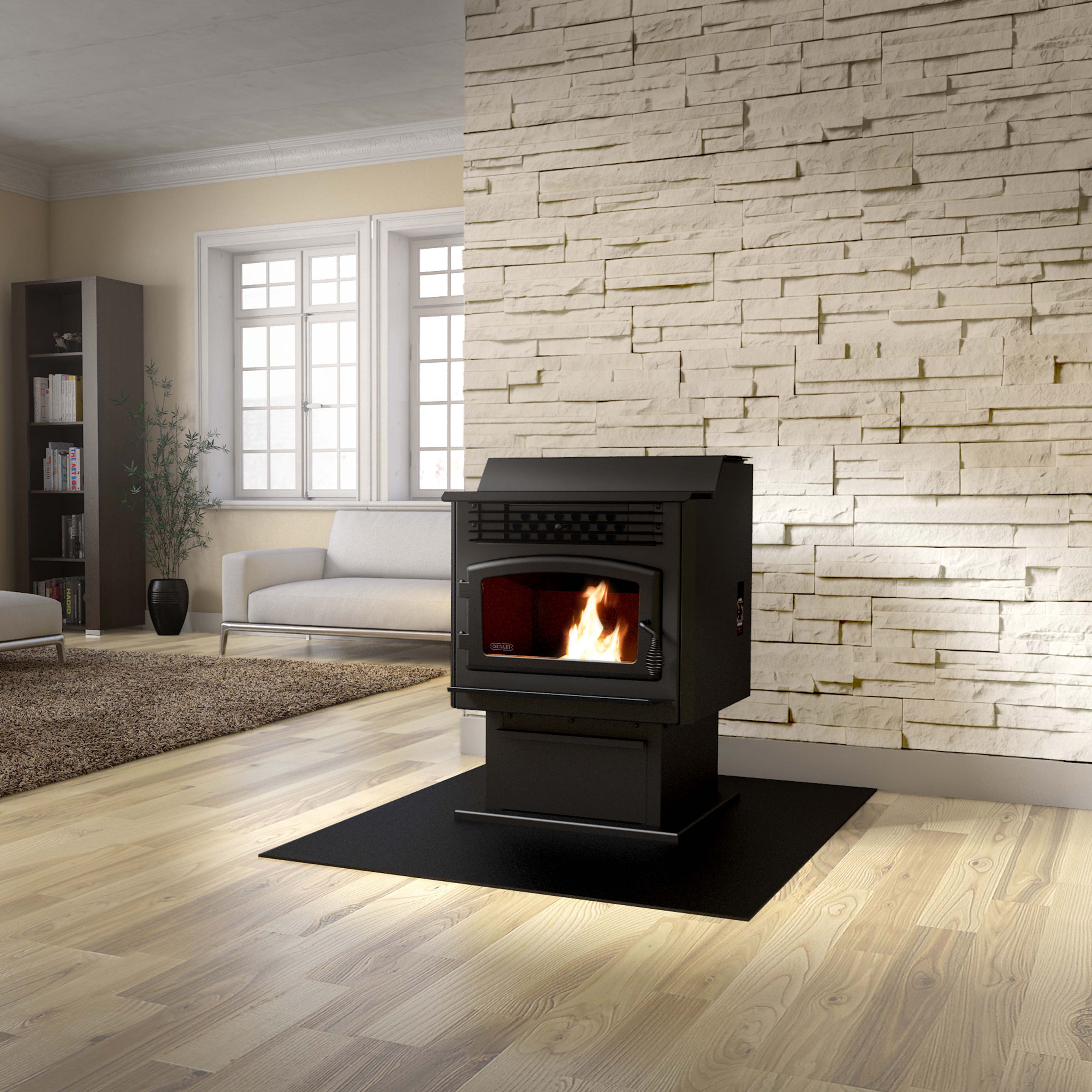

ECO-55 ST

DP00071Serial Numbers: 701 to ---SEE THE PRODUCT

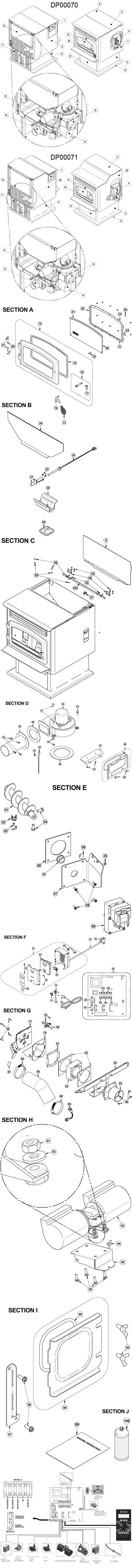

The reference plan contains the numbers used in the table below to identify parts.

#Part (sold individually)PriceAvailability
030546
THREADED HEAT EXCHANGER ROD 45 SERIE
1 / appliance (sold individually)
CAD $20.00--
030562
3/4" x 1/4"-20 ROUND HANDLE FOR EXCHANGER ROD
1 / appliance (sold individually)
CAD $15.00--
1PL69808
RIGHT SIDE DECORATIVE PANEL
1 / appliance (sold individually)
CAD $110.00--
2PL69809
LEFT SIDE DECORATIVE PANEL
1 / appliance (sold individually)
CAD $100.00--
3PL69806
LOWER RIGHT SIDE DECORATIVE PANEL
1 / appliance (sold individually)
CAD $39.00--
4PL69807
LOWER LEFT SIDE DECORATIVE PANEL
1 / appliance (sold individually)
CAD $39.00--
5PL69817
HOPPER LID
1 / appliance (sold individually)
CAD $95.00--
6PL69794
BACK PANEL
1 / appliance (sold individually)
CAD $60.00--
7PL69795
LOWER BACK PANEL
1 / appliance (sold individually)
CAD $34.00--
8SE69810
ASH DRAWER
1 / appliance (sold individually)
CAD $110.00--
10PL69833
LEFT SIDE DECORATIVE PANEL
1 / appliance (sold individually)
CAD $130.00--
11PL69854
BACK PANEL
1 / appliance (sold individually)
CAD $75.00--
12PL69832
RIGHT SIDE DECORATIVE PANEL
1 / appliance (sold individually)
CAD $130.00--
13AC07868
1/2" BLACK COIL HANDLE
1 / appliance (sold individually)
CAD $7.00--
14SE24085
DOOR FRAME WITH HANDLE AND GASKET WITHOUT GLASS
1 / appliance (sold individually)
CAD $230.00--
15AC06200
SILICONE & 1/4" x 1/2" x 11' BLACK GASKET KIT
1 / appliance (sold individually)
CAD $19.00--
16AC09176
DOOR HANDLE & LATCH KIT
1 / appliance (sold individually)
CAD $45.00--
17AC09185
DOOR LATCH KIT
1 / appliance (sold individually)
CAD $30.00--
18PL52683
REMOVABLE HANDLE
1 / appliance (sold individually)
CAD $20.00--
1930101
SPRING TENSION PIN 5/32"Ø x 1 1/2"L
1 / appliance (sold individually)
CAD $2.00--
20SE52708
7 51/64" x 16 3/4" x 8 23/32" ARCHED REPLACEMENT GLASS WITH GASKET
1 / appliance (sold individually)
CAD $140.00--
21AC06400
3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET
1 / appliance (sold individually)
CAD $11.00--
22PL52717
HINGE SIDE GLASS RETAINER
1 / appliance (sold individually)
CAD $5.00--
23PL08537-04
TOP GLASS RETAINER
1 / appliance (sold individually)
CAD $15.00--
24PL52719
HANDLE SIDE GLASS RETAINER
1 / appliance (sold individually)
CAD $5.00--
25PL52718
AIR DEFLECTOR TRIM
1 / appliance (sold individually)
CAD $5.00--
2630124
SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC
12 / appliance (sold individually)
CAD $1.00--
2730170
HINGE PIN 5/16"Ø x 1 1/2"L
2 / appliance (sold individually)
CAD $2.00--
2830055
HINGE PIN RETAINING RING 5/16"ID x 0.512"OD
2 / appliance (sold individually)
CAD $5.00--
29SE16059
ASH PLUG
1 / appliance (sold individually)
CAD $25.00--
30SE69759
BURN POT
1 / appliance (sold individually)
CAD $40.00--
3144192
IGNITOR TUBE
1 / appliance (sold individually)
CAD $55.00--
3230029
THREAD CUTTING SCREW 10-24 TYPE "F" x 3/8" HEX WASHER
16 / appliance (sold individually)
CAD $1.00--
33SE44132
IGNITER ASSEMBLY 120V 300W
1 / appliance (sold individually)
CAD $120.00--
34PL69777
FIRE BAFFLE
1 / appliance (sold individually)
CAD $100.00--
3530405
NUT #6-32 HEX ZINC
3 / appliance (sold individually)
CAD $12.00--
3630370
RUBBER BUMPER WITH THREADS 6-32
3 / appliance (sold individually)
CAD $16.00--
3744098
HOPPER LID SAFETY SWITCH
1 / appliance (sold individually)
CAD $20.00--
3830013
2" x 1 1/2" HINGE
2 / appliance (sold individually)
CAD $5.00--
39SE69785
EXHAUST PIPE ASSEMBLY
1 / appliance (sold individually)
CAD $39.00--
4021392
EXHAUST ADAPTER GASKET
1 / appliance (sold individually)
CAD $8.00--
4130093
BOLT 1/4-20 x 3/4" HEX GRADE 5
2 / appliance (sold individually)
CAD $2.00--
42SE44193
EXHAUST BLOWER WITH GASKETS
1 / appliance (sold individually)
CAD $220.00--
4330094
HEX SCREW WASHER HEAD 1/4-20 x 3/4" F ZINC TYPE
1 / appliance (sold individually)
CAD $2.00--
4430220
FLANGED LOCKNUT 1/4-20
2 / appliance (sold individually)
CAD $1.00--
45SE44095
THERMISTOR ASSEMBLY
1 / appliance (sold individually)
CAD $45.00--
4621393
EXHAUST BLOWER GASKET
1 / appliance (sold individually)
CAD $10.00--
47PL69764
SUPPORT EXHAUST TRAP
1 / appliance (sold individually)
CAD $24.00--
48SE69803
EXHAUST CLEANING PANEL ASSEMBLY
1 / appliance (sold individually)
CAD $34.00--
49AC06815
3/16" x 5' BLACK GASKET & SILICONE KIT
1 / appliance (sold individually)
CAD $15.00--
5030484
WING NUT 1/4-20
2 / appliance (sold individually)
CAD $1.00--
5124017
CAST IRON AUGER
1 / appliance (sold individually)
CAD $130.00--
5244059
THERMODISC 36T11 L250-25 AUTOMATIC
1 / appliance (sold individually)
CAD $25.00--
5330138
METAL SCREW #6 - 3/8" QUADREX "A" TYPE BLACK
2 / appliance (sold individually)
CAD $12.00--
5430092
BOLT 5/16"-18 x 3/4" HEX GRADE 5
2 / appliance (sold individually)
CAD $2.00--
5530528
BRASS BUSHING FOR PELLET STOVE AUGER
1 / appliance (sold individually)
CAD $10.00--
5621110
AUGER PLATE GASKET
1 / appliance (sold individually)
CAD $5.00--
57PL69773
AUGER BUSHING SUPPORT PLATE
1 / appliance (sold individually)
CAD $29.00--
5830026
THREAD CUTTING SCREW 10-24 F 5/8" HEX WASHER HEAD
10 / appliance (sold individually)
CAD $1.00--
5930369
RUBBER BUMPER WITH THREADS (LARGE)
1 / appliance (sold individually)
CAD $16.00--
6044106
GEAR MOTOR FOR PELLET STOVE 1.5 RPM
1 / appliance (sold individually)
CAD $220.00--
61SE69791
CONTROL BOARD BOX ASSEMBLY
1 / appliance (sold individually)
CAD $410.00--
6244148
MEMBRANE SWITCH CONTROL BOARD
1 / appliance (sold individually)
CAD $25.00--
63PL69855
CONTROL BOARD 55 SERIE
1 / appliance (sold individually)
CAD $350.00--
6460382
ECO-55 WIRING HARNESS
1 / appliance (sold individually)
CAD $170.00--
6544058
THERMODISC 36T12 F160
1 / appliance (sold individually)
CAD $20.00--
6630080
METAL SCREW #6 x 1/4 TYPE B PAN PHILLIPS
2 / appliance (sold individually)
CAD $1.00--
6744149
FUSE 8A / 250V (5 mm x 20 mm)
1 / appliance (sold individually)
CAD $10.00--
6844152
FUSE 0.5A / 250V (5 mm x 20 mm)
2 / appliance (sold individually)
CAD $10.00--
6944200
FUSE GLASS 2A 250V 5 x 20mm SLOW BLOW
1 / appliance (sold individually)
CAD $15.00--
7044201
FUSE GLASS 4A 250V 5 x 20mm SLOW BLOW
1 / appliance (sold individually)
CAD $3.00--
7160036
THERMOSTAT TERMINAL
1 / appliance (sold individually)
CAD $10.00--
7260196
POWER CORD RECEPTACLE
1 / appliance (sold individually)
CAD $5.00--
7330155
METAL SCREW #8 x 5/8'' PHILLIPS SELFTAPPING TEK ZINC
4 / appliance (sold individually)
CAD $15.00--
7460331
POWER CORD 6'
1 / appliance (sold individually)
CAD $20.00--
7549004
PRESSURE SWITCH HOSE
1 / appliance (sold individually)
CAD $15.00--
7644029
PRESSURE SWITCH
1 / appliance (sold individually)
CAD $50.00--
77SE69849
AIR CONTROL DAMPER ASSEMBLY
1 / appliance (sold individually)
CAD $80.00--
78PL69784
AIR INTAKE PLATE
1 / appliance (sold individually)
CAD $24.00--
7930021
BLACK SELF TAPPING SCREW 8-32 "F" TYPE x 7/16" FLAT HEAD QUADREX
2 / appliance (sold individually)
CAD $13.00--
8030439
TENSION CLAMP
1 / appliance (sold individually)
CAD $20.00--
81PL64359
COMBUSTION FAN GASKET FRAME
1 / appliance (sold individually)
CAD $21.00--
8221400
COMBUSTION BLOWER GASKET
2 / appliance (sold individually)
CAD $5.00--
8344195
AXIAL BLOWER 115V 9W 92 x 92 x 38 (PLASTIC IMPELLER)
1 / appliance (sold individually)
CAD $110.00--
84PL69799
AIR CONTROL BRACKET
1 / appliance (sold individually)
CAD $49.00--
8530777
PLASTIC BACKDRAFT DAMPER ASSEMBLY
1 / appliance (sold individually)
CAD $20.00--
8630502
SELF TAPING SCREW #8 - 32 x 1/2" TYPE F x 3/4 HEX FLAT HEAD
4 / appliance (sold individually)
CAD $1.00--
8730556
AIR CONTROL FINISHING TIP
1 / appliance (sold individually)
CAD $5.00--
8849400
3" TO 4" STAINLESS STEEL COLLAR
2 / appliance (sold individually)
CAD $21.00--
8921381
2 FOLD ALUMINUM LINER 3" x 6" COMPRESSED
1 / appliance (sold individually)
CAD $40.00--
9060383
IGNITER JUNCTION WIRE
1 / appliance (sold individually)
CAD $29.00--
9130100
BLACK HEX NUT 1/4 - 20
4 / appliance (sold individually)
CAD $1.00--
9230185
BLACK WASHER 17/64" AA TYPE
4 / appliance (sold individually)
CAD $1.00--
9344122
DOUBLE CAGE BLOWER 176 CFM (CLASS H)
1 / appliance (sold individually)
CAD $220.00--
9430485
WING NUT 1/4-20 x 1/2" ZINC PLATTED
3 / appliance (sold individually)
CAD $6.00--
95PL69805
CONVECTION FAN SUPPORT
1 / appliance (sold individually)
CAD $10.00--
9630446
CARRIAGE BOLT 1/4 - 20 x 1" ZINC
4 / appliance (sold individually)
CAD $12.00--
97PL69802
CLEANING ACCESS PANEL SUPPORT
1 / appliance (sold individually)
CAD $16.00--
98SE69804
CLEANING ACCESS PANEL WITH GASKET
1 / appliance (sold individually)
CAD $34.00--
9945876
USER MANUAL
1 / appliance (sold individually)
CAD $29.00--
100AC05959
METALLIC BLACK STOVE PAINT - 342 g (12oz) AEROSOL
1 / appliance (sold individually)
CAD $19.00--
10144150
FUSE 3A / 250V (5 mm x 20 mm)
1 / appliance (sold individually)
CAD $5.00--
10244199
FUSE GLASS 1.25A 250V 5 x 20 mm SLOW BLOW
1 / appliance (sold individually)
CAD $3.00--
103PL69896
LATERAL ADJUSTMENT FOR TOP
1 / appliance (sold individually)
CAD $15.00--
104SE69990
ECO-55 SD CARD
1 / appliance (sold individually)
CAD $65.00--

The number appears on the reference plan provided above the table.

Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
