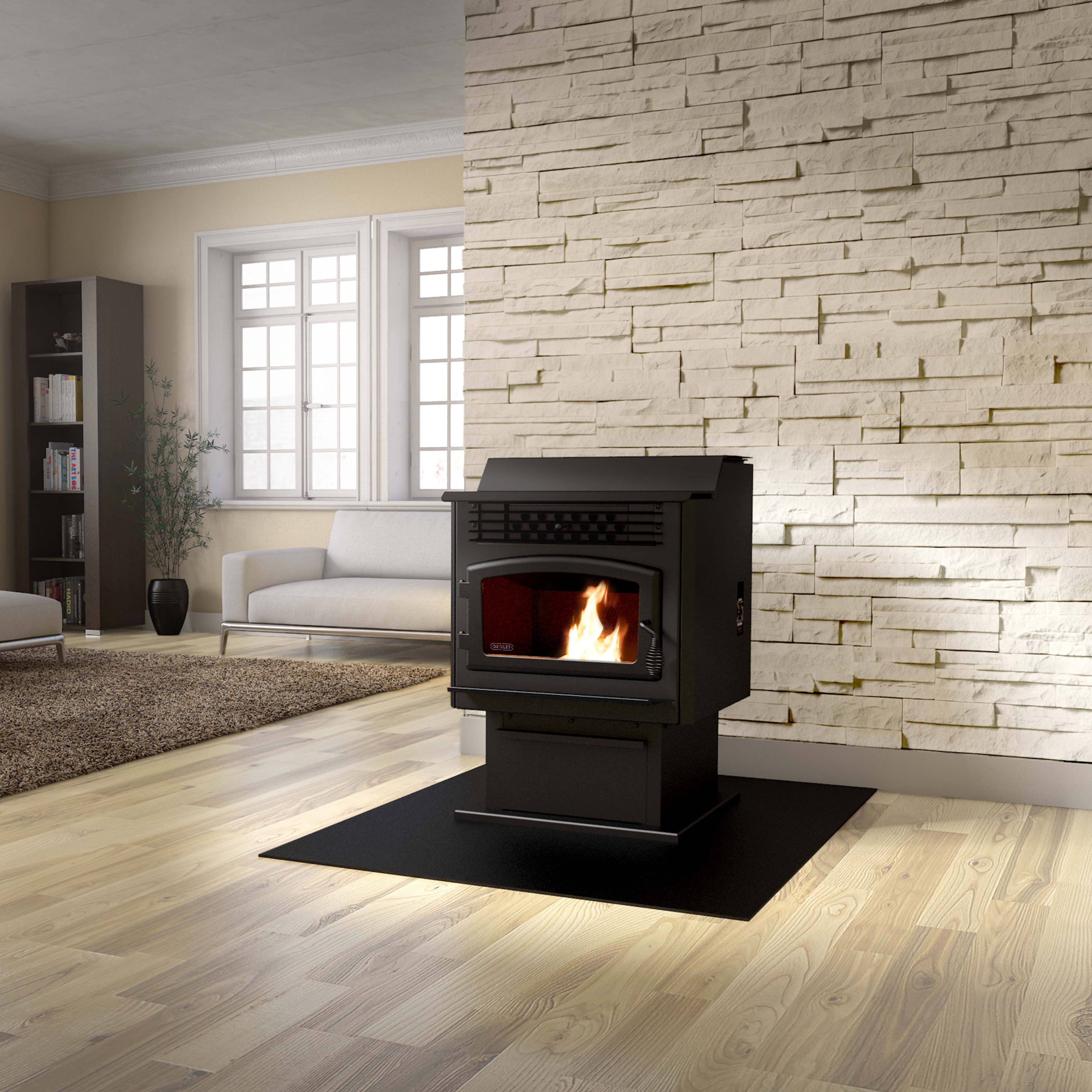

ECO-55 ST

DP00071Serial Numbers: 701 to ---SEE THE PRODUCT

The reference plan contains the numbers used in the table below to identify parts.

#Part (sold individually)PriceAvailability
030546
THREADED HEAT EXCHANGER ROD 45 SERIE
1 / appliance (sold individually)
USD $20.00--
030562
3/4" x 1/4"-20 ROUND HANDLE FOR EXCHANGER ROD
1 / appliance (sold individually)
USD $15.00--
1PL69808
RIGHT SIDE DECORATIVE PANEL
1 / appliance (sold individually)
USD $110.00--
2PL69809
LEFT SIDE DECORATIVE PANEL
1 / appliance (sold individually)
USD $100.00--
3PL69806
LOWER RIGHT SIDE DECORATIVE PANEL
1 / appliance (sold individually)
USD $39.00--
4PL69807
LOWER LEFT SIDE DECORATIVE PANEL
1 / appliance (sold individually)
USD $39.00--
5PL69817
HOPPER LID
1 / appliance (sold individually)
USD $95.00--
6PL69794
BACK PANEL
1 / appliance (sold individually)
USD $60.00--
7PL69795
LOWER BACK PANEL
1 / appliance (sold individually)
USD $34.00--
8SE69810
ASH DRAWER
1 / appliance (sold individually)
USD $110.00--
10PL69833
LEFT SIDE DECORATIVE PANEL
1 / appliance (sold individually)
USD $130.00--
11PL69854
BACK PANEL
1 / appliance (sold individually)
USD $75.00--
12PL69832
RIGHT SIDE DECORATIVE PANEL
1 / appliance (sold individually)
USD $130.00--
13AC07868
1/2" BLACK COIL HANDLE
1 / appliance (sold individually)
USD $6.00--
14SE24085
DOOR FRAME WITH HANDLE AND GASKET WITHOUT GLASS
1 / appliance (sold individually)
USD $230.00--
15AC06200
SILICONE & 1/4" x 1/2" x 11' BLACK GASKET KIT
1 / appliance (sold individually)
USD $19.00--
16AC09176
DOOR HANDLE & LATCH KIT
1 / appliance (sold individually)
USD $45.00--
17AC09185
DOOR LATCH KIT
1 / appliance (sold individually)
USD $30.00--
18PL52683
REMOVABLE HANDLE
1 / appliance (sold individually)
USD $20.00--
1930101
SPRING TENSION PIN 5/32"Ø x 1 1/2"L
1 / appliance (sold individually)
USD $2.00--
20SE52708
7 51/64" x 16 3/4" x 8 23/32" ARCHED REPLACEMENT GLASS WITH GASKET
1 / appliance (sold individually)
USD $140.00--
21AC06400
3/4" x 6' FLAT BLACK SELF-ADHESIVE GLASS GASKET
1 / appliance (sold individually)
USD $10.00--
22PL52717
HINGE SIDE GLASS RETAINER
1 / appliance (sold individually)
USD $5.00--
23PL08537-04
TOP GLASS RETAINER
1 / appliance (sold individually)
USD $15.00--
24PL52719
HANDLE SIDE GLASS RETAINER
1 / appliance (sold individually)
USD $5.00--
25PL52718
AIR DEFLECTOR TRIM
1 / appliance (sold individually)
USD $5.00--
2630124
SCREW #8 - 32 x 5/16" TRUSS QUADREX ZINC
12 / appliance (sold individually)
USD $1.00--
2730170
HINGE PIN 5/16"Ø x 1 1/2"L
2 / appliance (sold individually)
USD $2.00--
2830055
HINGE PIN RETAINING RING 5/16"ID x 0.512"OD
2 / appliance (sold individually)
USD $5.00--
29SE16059
ASH PLUG
1 / appliance (sold individually)
USD $25.00--
30SE69759
BURN POT
1 / appliance (sold individually)
USD $40.00--
3144192
IGNITOR TUBE
1 / appliance (sold individually)
USD $55.00--
3230029
THREAD CUTTING SCREW 10-24 TYPE "F" x 3/8" HEX WASHER
16 / appliance (sold individually)
USD $1.00--
33SE44132
IGNITER ASSEMBLY 120V 300W
1 / appliance (sold individually)
USD $120.00--
34PL69777
FIRE BAFFLE
1 / appliance (sold individually)
USD $100.00--
3530405
NUT #6-32 HEX ZINC
3 / appliance (sold individually)
USD $12.00--
3630370
RUBBER BUMPER WITH THREADS 6-32
3 / appliance (sold individually)
USD $16.00--
3744098
HOPPER LID SAFETY SWITCH
1 / appliance (sold individually)
USD $20.00--
3830013
2" x 1 1/2" HINGE
2 / appliance (sold individually)
USD $5.00--
39SE69785
EXHAUST PIPE ASSEMBLY
1 / appliance (sold individually)
USD $39.00--
4021392
EXHAUST ADAPTER GASKET
1 / appliance (sold individually)
USD $8.00--
4130093
BOLT 1/4-20 x 3/4" HEX GRADE 5
2 / appliance (sold individually)
USD $2.00--
42SE44193
EXHAUST BLOWER WITH GASKETS
1 / appliance (sold individually)
USD $220.00--
4330094
HEX SCREW WASHER HEAD 1/4-20 x 3/4" F ZINC TYPE
1 / appliance (sold individually)
USD $2.00--
4430220
FLANGED LOCKNUT 1/4-20
2 / appliance (sold individually)
USD $1.00--
45SE44095
THERMISTOR ASSEMBLY
1 / appliance (sold individually)
USD $45.00--
4621393
EXHAUST BLOWER GASKET
1 / appliance (sold individually)
USD $10.00--
47PL69764
SUPPORT EXHAUST TRAP
1 / appliance (sold individually)
USD $24.00--
48SE69803
EXHAUST CLEANING PANEL ASSEMBLY
1 / appliance (sold individually)
USD $34.00--
49AC06815
3/16" x 5' BLACK GASKET & SILICONE KIT
1 / appliance (sold individually)
USD $14.00--
5030484
WING NUT 1/4-20
2 / appliance (sold individually)
USD $1.00--
5124017
CAST IRON AUGER
1 / appliance (sold individually)
USD $130.00--
5244059
THERMODISC 36T11 L250-25 AUTOMATIC
1 / appliance (sold individually)
USD $25.00--
5330138
METAL SCREW #6 - 3/8" QUADREX "A" TYPE BLACK
2 / appliance (sold individually)
USD $12.00--
5430092
BOLT 5/16"-18 x 3/4" HEX GRADE 5
2 / appliance (sold individually)
USD $2.00--
5530528
BRASS BUSHING FOR PELLET STOVE AUGER
1 / appliance (sold individually)
USD $10.00--
5621110
AUGER PLATE GASKET
1 / appliance (sold individually)
USD $5.00--
57PL69773
AUGER BUSHING SUPPORT PLATE
1 / appliance (sold individually)
USD $29.00--
5830026
THREAD CUTTING SCREW 10-24 F 5/8" HEX WASHER HEAD
10 / appliance (sold individually)
USD $1.00--
5930369
RUBBER BUMPER WITH THREADS (LARGE)
1 / appliance (sold individually)
USD $16.00--
6044106
GEAR MOTOR FOR PELLET STOVE 1.5 RPM
1 / appliance (sold individually)
USD $220.00--
61SE69791
CONTROL BOARD BOX ASSEMBLY
1 / appliance (sold individually)
USD $410.00--
6244148
MEMBRANE SWITCH CONTROL BOARD
1 / appliance (sold individually)
USD $25.00--
63PL69855
CONTROL BOARD 55 SERIE
1 / appliance (sold individually)
USD $350.00--
6460382
ECO-55 WIRING HARNESS
1 / appliance (sold individually)
USD $170.00--
6544058
THERMODISC 36T12 F160
1 / appliance (sold individually)
USD $20.00--
6630080
METAL SCREW #6 x 1/4 TYPE B PAN PHILLIPS
2 / appliance (sold individually)
USD $1.00--
6744149
FUSE 8A / 250V (5 mm x 20 mm)
1 / appliance (sold individually)
USD $10.00--
6844152
FUSE 0.5A / 250V (5 mm x 20 mm)
2 / appliance (sold individually)
USD $10.00--
6944200
FUSE GLASS 2A 250V 5 x 20mm SLOW BLOW
1 / appliance (sold individually)
USD $15.00--
7044201
FUSE GLASS 4A 250V 5 x 20mm SLOW BLOW
1 / appliance (sold individually)
USD $3.00--
7160036
THERMOSTAT TERMINAL
1 / appliance (sold individually)
USD $10.00--
7260196
POWER CORD RECEPTACLE
1 / appliance (sold individually)
USD $5.00--
7330155
METAL SCREW #8 x 5/8'' PHILLIPS SELFTAPPING TEK ZINC
4 / appliance (sold individually)
USD $15.00--
7460331
POWER CORD 6'
1 / appliance (sold individually)
USD $20.00--
7549004
PRESSURE SWITCH HOSE
1 / appliance (sold individually)
USD $15.00--
7644029
PRESSURE SWITCH
1 / appliance (sold individually)
USD $50.00--
77SE69849
AIR CONTROL DAMPER ASSEMBLY
1 / appliance (sold individually)
USD $80.00--
78PL69784
AIR INTAKE PLATE
1 / appliance (sold individually)
USD $24.00--
7930021
BLACK SELF TAPPING SCREW 8-32 "F" TYPE x 7/16" FLAT HEAD QUADREX
2 / appliance (sold individually)
USD $13.00--
8030439
TENSION CLAMP
1 / appliance (sold individually)
USD $20.00--
81PL64359
COMBUSTION FAN GASKET FRAME
1 / appliance (sold individually)
USD $21.00--
8221400
COMBUSTION BLOWER GASKET
2 / appliance (sold individually)
USD $5.00--
8344195
AXIAL BLOWER 115V 9W 92 x 92 x 38 (PLASTIC IMPELLER)
1 / appliance (sold individually)
USD $110.00--
