ECO-55 ST

DP00071

Review this product

$3,099.00

Recommended heating area500 - 2,000 ft²

RECOMMENDED AREA MAP BY CLIMATE ZONE

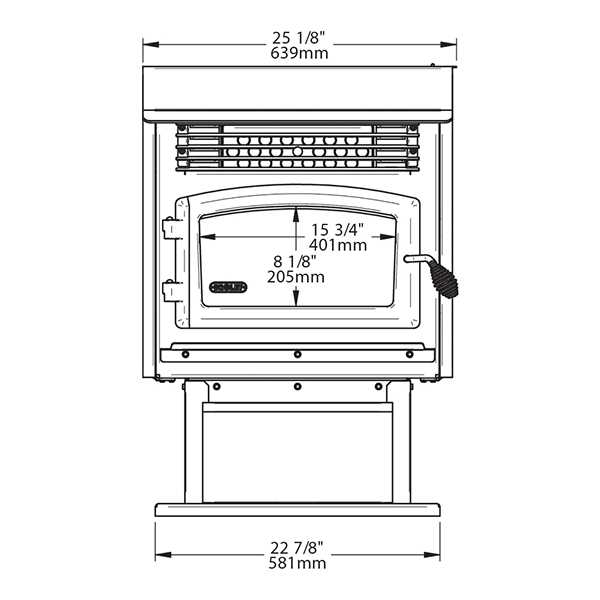

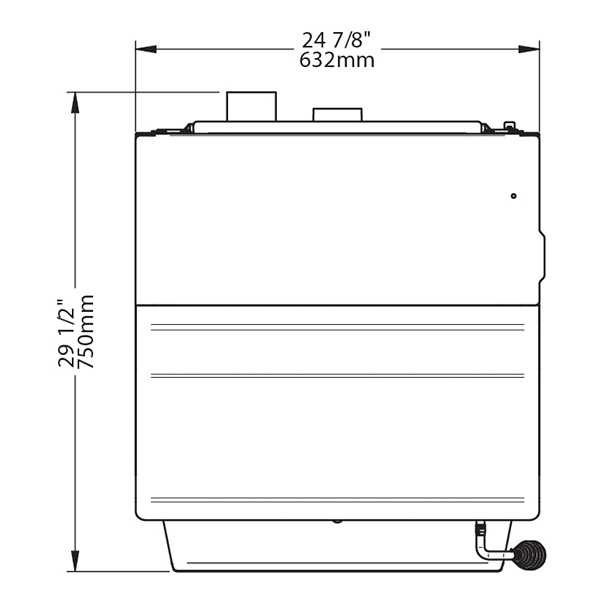

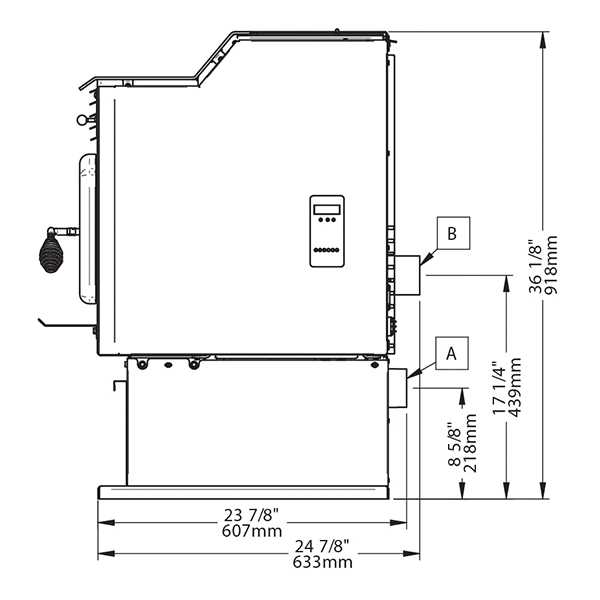

Size25 1/8" W X 29 1/2" D X 36 1/8" H

Maximum burn time69 h

Description

Easy to use and maintain, the Eco-55 pellet stove is ideal for heating spaces up to 2,000 ft². It features intuitive electronic control and easy to use thermostatic control. Cleaning is a breeze, with access to components that are removable without tools. Certified at only 0.96 g/h, the Eco-55 produces up to 39,260 BTU/h, and provides clean and efficient heating. The Eco-55 ST is the ''step top'' version of the classic Eco-55: its top being on two levels, the hopper is larger and therefore allows greater autonomy.

Included: blower, ceramic glass, ash lip

▪ Up to 69 hours burn time (up to 138 hours with the optional hopper extension)
▪ Hopper capacity of 80 lb
▪ Top-feed burner
▪ EPA certified
▪ Proudly made in Canada
▪ Limited lifetime warranty
▪ Certified for mobile home and alcove installation

Any installation must be done according to the data and drawings detailed in the owner’s manual.

Options

Specifications

Fuel type (12)	Pellet (Premium grade or better)
Recommended heating area (10)	500 - 2,000 ft²
Hopper capacity	80 lb (36 kg)
Maximum burn time (10)	69 h
Maximum heat input rate (4)	39,260 BTU/h (11.5 kW)
Minimum overall heat output rate (5)	6,648 BTU/h (1.95 kW)
Maximum overall heat output rate (5)	28,540 BTU/h (8.36 kW)
Minimum average overall efficiency (HHV) (6) (8)	70.3 %
Maximum average overall efficiency (LHV) (6) (7)	75.8 %
Optimum efficiency (2)	78.4%
Optimum heat transfer efficiency (9)	73 %
Burn rate	1.2 - 4.7 lb/h
Average particulate emission rate (3)	0.96 g/h
Average CO (11)	7.6 g/h
Average electrical power consumption for ignition cycle (1)	3.02A (360 W)
Average electrical power consumption for continuous operation (1)	1.3 - 2.5A (51 - 140 W)
Size	Medium
Alcove installation approved	Yes
Mobile home approved	Yes, with fresh air intake
Certified according to applicable standards	By an accredited laboratory (CAN/USA)
Premium quality blower included (CFM)	176 CFM included

Combustion technology	Top-feed
Baffle type	Stainless steel
Flue outlet diameter	3"
Recommended chimney diameter	3" \| 4"
Type of chimney	ULC/ORD-C441, CAN/ULC S609, UL 641 (TYPE L)
Overall dimension (Width)	25 1/8"
Overall dimension (Height)	36 1/8"
Overall dimension (Depth)	29 1/2"
Voltage and frequency	120 VAC / 60 Hz
Noise level at 6 feet	47 dBa (+/- 3 dBa) - 60 dBa (+/- 3 dBa)
Door type	Single, glass with cast iron frame
Glass type	Ceramic glass
Glass surface - W x H	15 3/4" x 8 1/8"
High-efficiency certified appliance	Yes, EPA 2020 approved
Canadian Standard (emissions)	CSA B415.1-10
USA Standard (emissions)	EPA, ASTM E2779
Canadian Standard (safety)	ULC S627
USA Standard (safety)	UL 1482, ASTM E1509
Warranty	Limited lifetime
Shipping weight	286 lb (130 kg)

Clearances to combustibles*	Canada United-States
Clearance - Base of the unit to ceiling**	48"48"
Clearance - Back wall	3"3"
Clearance - Side wall	6"6"
Clearance - Corner	3"3"

*The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).

**Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.

1. Unless stated otherwise, measures were taken directly at the main power source and include all electrical components present in the appliance.
2. Optimum overall efficiency at a specific burn rate (LHV).
3. This appliance is officially tested and certified by an independent agency.
4. Based on the maximum burn-rate and a dry energy value of pellet at 8,600 BTU/lb.
5. As measured per CSA B415.1-10 stack loss method.
6. Efficiency based on radiated and delivered heat when allowing cycling from high to low burn to simulate thermostat demand.
7. Lower Heating Value of the fuel.
8. Higher Heating Value of the fuel.
9. The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the solid fuels into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.
10. Recommended heating area and maximum burn time may vary subject to location in home, chimney draft, heat loss factors, climate, fuel type, feed rate, fuel level, and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature considering that the space configuration and the presence of heat distribution systems have a significant impact in making heat circulation optimum.
11. Carbon monoxyde.
12. Grades of pellet fuel are determined by organizations such as Pellet Fuels Institute (PFI), ENplus and CANplus.
