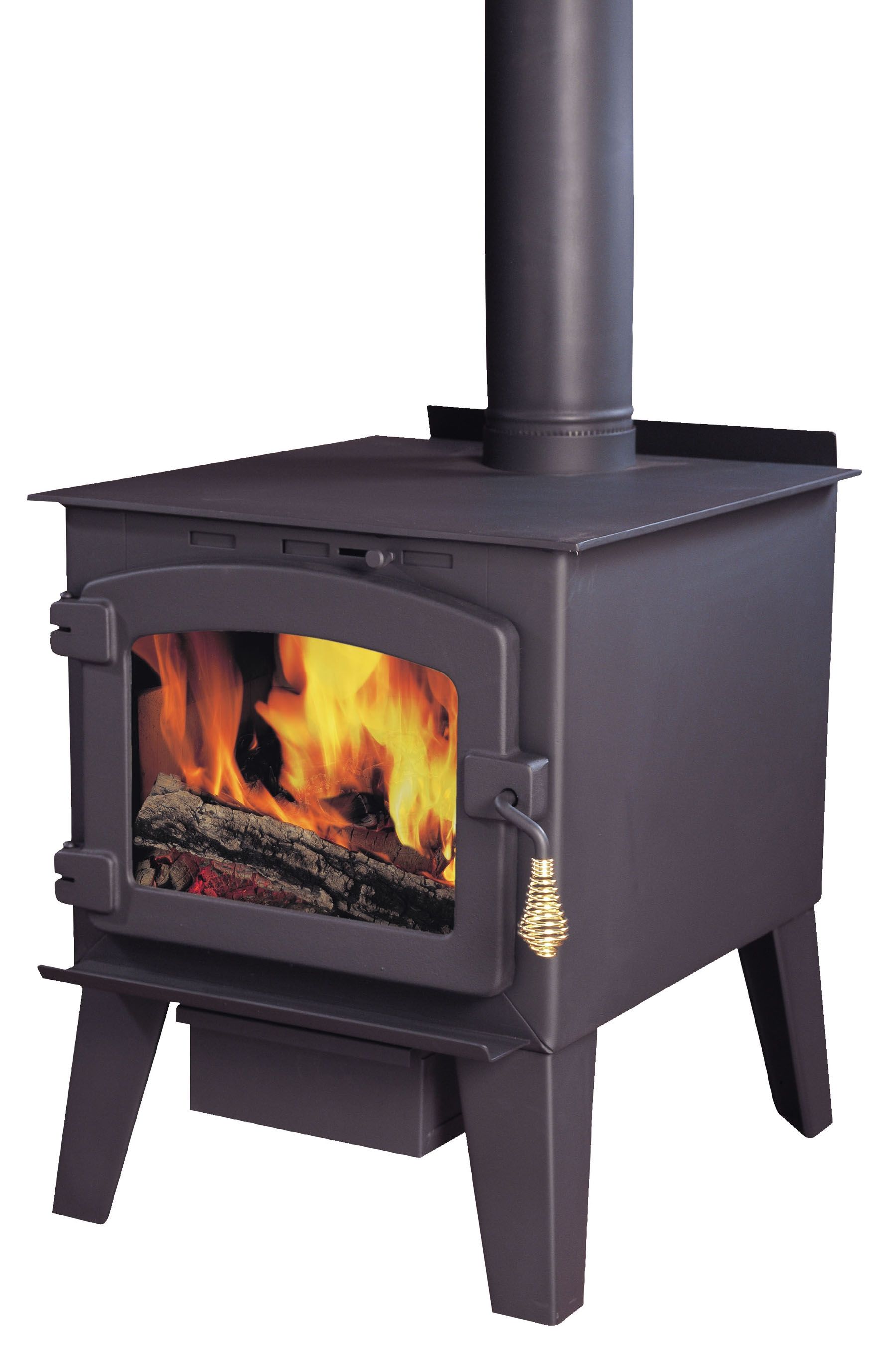

CONTEMPRO 1600 - N.E.

DB05162--

The reference plan contains the numbers used in the table below to identify parts.

#Part (sold individually)PriceAvailability
1AC07860
1/2" BRASS COIL HANDLE
1 / appliance (sold individually)
USD $7.00--
2AC09150
HANDLE & LATCH KIT
1 / appliance (sold individually)
USD $35.00--
2AC09185
DOOR LATCH KIT
1 / appliance (sold individually)
USD $30.00--
399998
DISCONTINUED
1 / appliance (sold individually)
USD $14.00--
4SE08435-05
11 1/8" X 15 1/4" CONTEMPRO REMPLACEMENT GLASS
1 / appliance (sold individually)
USD $190.00--
5AC06000
SILICONE & 1/2" x 8' BLACK DOOR GASKET KIT
1 / appliance (sold individually)
USD $14.00--
6PL08435-07
GLASS SIDE & BOTTOM MOULDING
3 / appliance (sold individually)
USD $20.00--
7AC07861
1/4" BRASS COIL HANDLE
1 / appliance (sold individually)
USD $6.00--
8PL08807
CONTEMPRO 1600 STAINLESS STEEL BAFFLE
1 / appliance (sold individually)
USD $80.00--
929010
4 1/2" x 9" x 1 1/4" REFRACTORY BRICK
23 / appliance (sold individually)
USD $3.50--
10PL36049
4 1/2" x 4 1/2" x 1 1/4" REFRACTORY BRICK
1 / appliance (sold individually)
USD $10.00--
11SE08402
CONTEMPRO ASH DRAWER
1 / appliance (sold individually)
USD $90.00--
12SE08602
ASH DUMP PLUG
1 / appliance (sold individually)
USD $25.00--
13PL08435-06
GLASS TOP MOULDING
1 / appliance (sold individually)
USD $15.00--

The number appears on the reference plan provided above the table.

Note that the quantities per unit listed above are the standard quantities found in each appliance, not the number of items you need to order.
