TUNDRA II

DF02001

(382)

See reviews

Heating area1,000 - 2,500 ft²

RECOMMENDED AREA MAP BY CLIMATE ZONE

Maximum log length21"

Maximum burn time10 h

Description

Only available in Canada

Ideal for heating spaces up to 2,500 ft², the Tundra II wood-burning furnace delivers up to 310,000 BTU of power. Manufactured to high quality standards, this central heating appliance is specifically designed to be east to install. Equipped with an adjustable hot air plenum that can accommodate six to ten round Ø6" ducts, this furnace also includes an RTD thermal probe that automatically adjusts the blower speed according to the temperature of the plenum.

Included: 4-speed blower, plenum, combustion control, ash lip, ash drawer, poker and scraper

▪ Up to 10 hours burn time
▪ 21" logs (loading over depth)
▪ 3.6 ft³ firebox
▪ Glass airwash system for a cleaner view of the flames
▪ CSA B415.1-10 certified (Canada only)
▪ Proudly made in Canada
▪ Limited lifetime warranty
▪ For maximum comfort, it is possible to connect the furnace to a wall thermostat to allow you to maintain a more constant temperature throughout your house.
▪ Air filters help filter dirt before distributing hot air in your installation in addition to protecting the blower. The use of filters is strongly recommended.
▪ The fresh air return adapter can be added to the blower box to increase the efficiency of your system. This option allows you to take fresh air from the rooms and bring it to the furnace to be heated and redistributed in these same rooms. It allows more even air circulation to increase comfort.

Any installation must be done according to the data and drawings detailed in the owner’s manual.

Options

Specifications

Fuel type	Dry cordwood (16" recommended)
Heating area (12)	1,000 - 2,500 ft²
Overall firebox volume	3.6 ft³
Maximum burn time (12)	10 h
Maximum input capacity (dry cordwood) (1)	310,000 BTU
Nominal heat output at 15lb/ft³ fuel loading density	75,000 BTU
Minimum overall heat output rate (7)	15,436 BTU/h (4.5 kW)
Maximum overall heat output rate (7)	49,638 BTU/h (14.5 kW)
Minimum average overall efficiency (HHV) (11) (10)	76.7 %
Maximum average overall efficiency (LHV) (11) (9)	82.9 %
Minimum delivered heat output rate (6)	12,635 BTU/h (3.7 kW)
Maximum delivered heat output rate (6)	44,857 BTU/h (13.1 kW)
Minimum average delivered efficiency (HHV) (8) (10)	62.7 %
Maximum average delivered efficiency (LHV) (8) (9)	68.3 %
Optimum efficiency (3)	84.9 %
Average particulate emission rate (4) (5)	0.654 lb/mmBTU (0.282 g/MJ)
Average CO (13)	11.22 lb/mmBTU (4.81 g/MJ)
Average electrical power consumption (2)	250 W
Size	Medium
High-efficiency certified appliance	CSA B415.1-10 approved for Canada
Certified according to applicable standards	By an accredited laboratory (CAN/USA)
Premium quality blower included (CFM)	Included
Blower (hp \| speed \| CFM)	1/4 \| 4 \| 1,800
Stainless-steel secondary-air system	Yes
Flue outlet diameter	6"
Recommended chimney diameter	6"
Type of chimney	CAN/ULC S629, UL 103 HT (2100 °F)

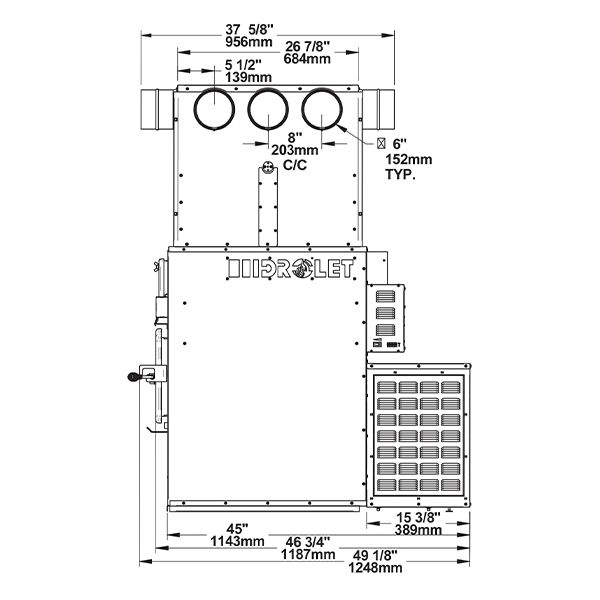

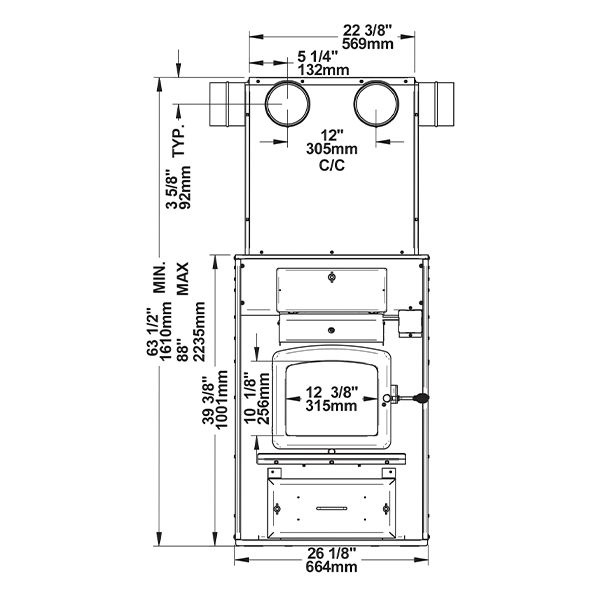

Overall dimension (Width)	33 1/4"

Overall dimension (Height)	63 1/2" min.
Overall dimension (Depth)	49 1/8"
Evacuation direction	Horizontal
Distance-center of the flue outlet to floor	35 5/8"
Distance-center of the flue outlet to side unit	13"
Door type	Single, glass with cast iron frame
Door opening size (Width)	13 3/4"
Door opening size (Height)	10"
Glass type	Ceramic glass
Glass surface - W x H	12 3/8" x 10 1/8"
Baffle type	C-Cast or equivalent
Firebox size (Width)	17"
Firebox size (Height)	16 1/8"
Firebox size (Depth)	22 5/8"
Maximum log length	21"
Log positioning	Loading over depth
Firebox lined with refractory bricks	Yes
Steel thickness-top	1/4"
Steel thickness-body	3/16"
Filter - Dimensions (Width x Height x Depth)	15" x 20" x 1" (option)
Hot air plenum - Minimum height of the furnace with plenum	63 1/2" min. for 72" ceiling \| 73" min. for a ceiling higher than 84"
Hot air plenum - Height (minimum - maximum)	22 3/8" x 26 7/8"
Canadian Standard (safety)	CAN/CSA B366.1
USA Standard (safety)	UL 391
Canadian Standard (emissions)	CSA B415.1-10
Warranty	Limited lifetime
Shipping weight	650 lb (295 kg)

Clearances to combustibles*	Canada USA
Clearance - Side wall	11"11"
Clearance - Base of the unit to ceiling**	69" min.69" min.
Clearance - Back wall of the blower box	16"16"
Clearance - Plenum \| Ducts to the ceiling	5" from the plenum \| 1" from ducts5" du plénum \| 1" des conduits
Clearance - Recommended distance for maintenance on option side	30"30"
Clearance - Opposite side wall	24"24"
Clearance - Floor protection in front of the unit (from door opening)	18"16"

*The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).

**Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.

1. Input value at 10 lb/ft³ fuel loading density and dry energy value of 8,600 BTU/lb.
2. Unless stated otherwise, measures were taken directly at the main power source and include all electrical components present in the appliance.
3. Optimum overall efficiency at a specific burn rate (LHV).
4. Based on delivered heat output.
5. This appliance is officially tested and certified by an independent agency.
6. Delivered: Remotely provided to other rooms through ducting at 10 lb/ft³ fuel loading density over one total burn cycle.
7. Overall : Radiated and delivered heat together at 10 lb/ft³ fuel loading density over one total burn cycle.
8. Efficiency based on delivered heat when allowing cycling from high to low burn to simulate thermostat demand. LHV % is based on manufacturer’s estimation.
9. Lower Heating Value of the fuel.
10. Higher Heating Value of the fuel.
11. Efficiency based on radiated and delivered heat when allowing cycling from high to low burn to simulate thermostat demand.
12. Recommended heating area and maximum burn time may vary subject to location in home, chimney draft, heat loss factors, climate, fuel type and other variables. The recommended heating area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature considering that the space configuration and the presence of heat distribution systems have a significant impact in making heat circulation optimum.
13. Carbon Monoxyde. Based on overall heat output at 10 lb/ft³ fuel loading density.
